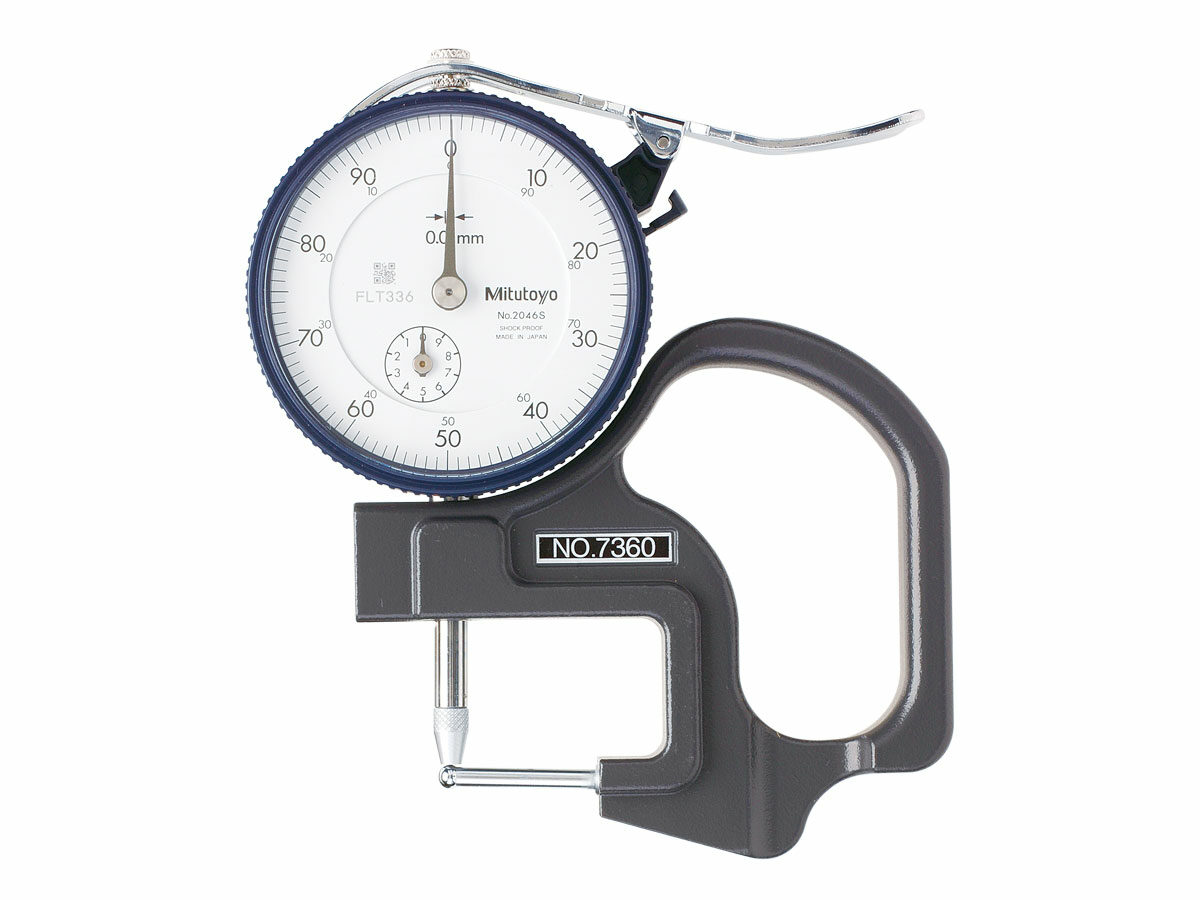

The Mitutoyo dial tube thickness gage conveniently measures the thickness of curved pieces used in a wide range of applications. The tube thickness anvil reduces the surface area of the contact point for more precise point measurements and is coated in ceramic for durability and corrosion resistance. The grip handle, easy-to-reach lifting lever and spring-loaded spindle allows for faster, easier measurements without sacrificing accuracy.
- Available in Metric and Inch models
- Measures curved thicknesses up to 10mm / .5″ in thickness
- White dial face for easier, precise measurement readings
- Anvil and contact point are made of ceramic for better corrosion resistance
- Measuring force is 1.4N or less
- Crystal is glare-free with a scratch-resistant coating
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Graduation: | Accuracy: | |
|---|
| 7360A | — | Metric | 0-10mm | 0.01mm | ±15µm |
| 7361A | — | Inch | 0-0.5′ | 0.001′ | ±0.001′ |
Технические характеристики
| Technology: | Mechanical |
|---|
| Measuring Force: | 1.4 or lessN |
|---|
| Remarks: | Tube thickness |
|---|
| Required Accessories: | — |
|---|
