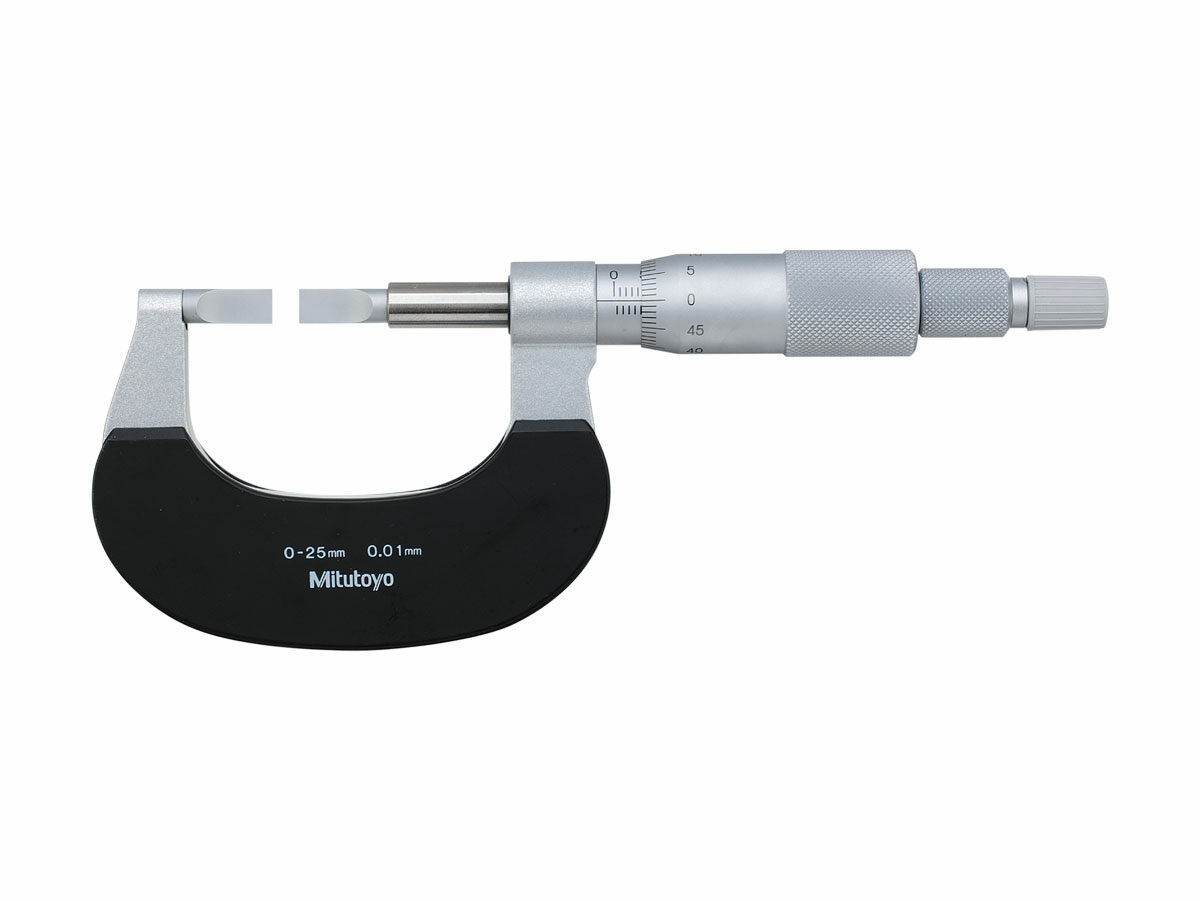

The Mitutoyo mechanical blade micrometer utilizes a blade anvil and spindle for measuring difficult pieces such as groove diameters of shafts and keyways. The non-rotating spindle reduces torsion on softer parts being measured and prevents workpiece deformation and wear. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
- Available in Metric and Inch models
- Ratchet thimble allows for easy single-hand use when measuring objects
- Elimination of overspeed errors provides a higher measurement reliability and repeatability
- Knurled friction thimbles provide quick adjustments even when wearing gloves
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame has a baked enamel finish for durability and longer lifespan
- Supplied in fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Mass: | Graduation: | Anvil Type: | Parallelism: | Measuring Faces: | |
|---|
| 122-125-10 | ![]() | Inch | 0-1′ | ±0.00015′ | 260g | 0.0001′ | Type A | 0.00015′ or less | — |
| 122-126-10 | — | Inch | 1-2′ | ±0.00015′ | 300g | 0.0001′ | Type A | 0.00015′ or less | — |
| 122-127-10 | ![]() | Inch | 2-3′ | ±0.00015′ | 360g | 0.0001′ | Type A | 0.00015′ or less | — |
| 122-128-10 | ![]() | Inch | 3-4′ | ±0.00020′ | 525g | 0.0001′ | Type A | 0.00020′ or less | — |
| 122-151-10 | ![]() | Inch | 0-1′ | ±0.00015′ | 275g | 0.0001′ | TypevD | 0.00015′ or less | Carbide tip |
| 122-125-10 |
| 122-126-10 |
| 122-127-10 |
| 122-128-10 |
| 122-151-10 |
Технические характеристики
| Technology: | Mechanical |
|---|
| SPC Output: | No |
|---|
| Ratchet/Thimble: | Ratchet Stop |
|---|
