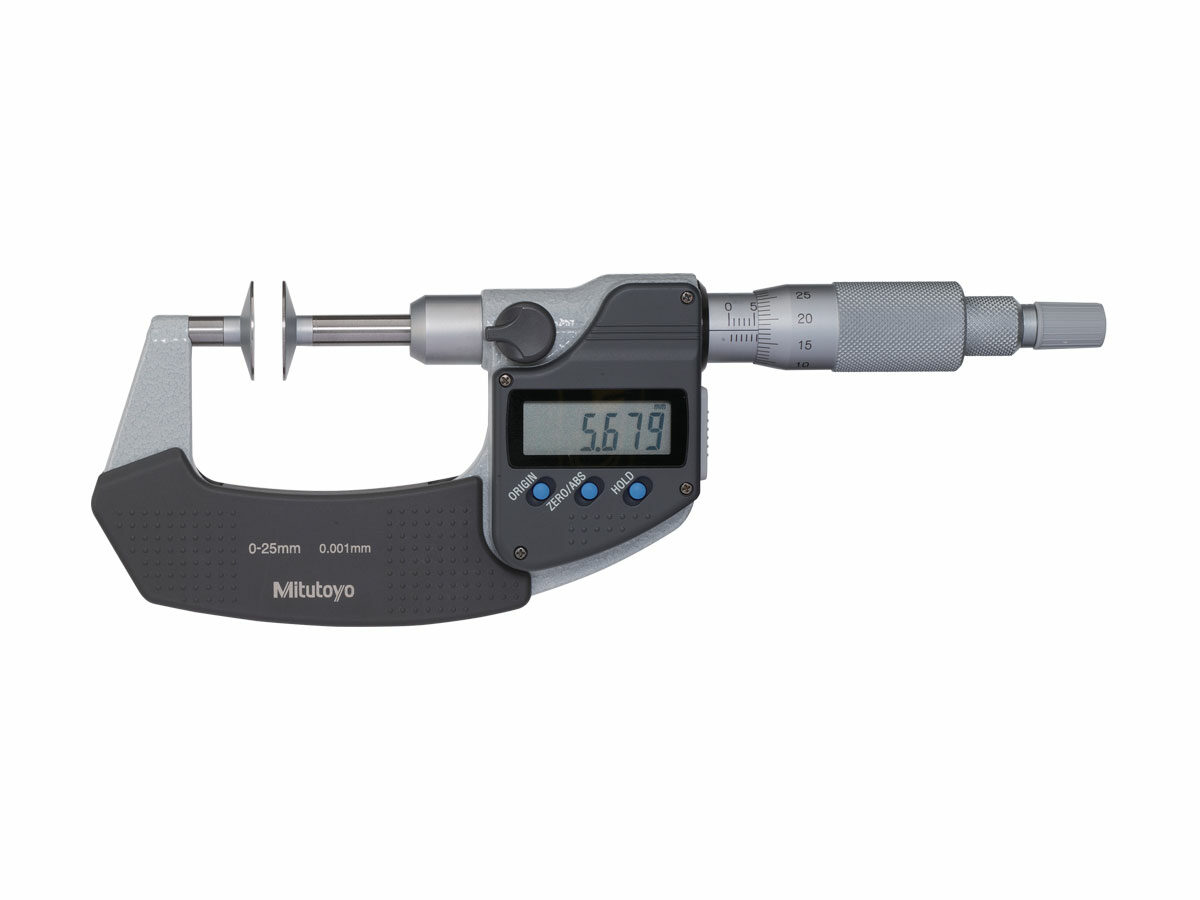

The Mitutoyo Digimatic non-rotating spindle disc micrometer is designed to measure the root tangent length of spur gears and helical gears with high accuracy.
The Mitutoyo digital disc micrometer uses flat discs and non-rotating spindle made with hardened steel in our own Japanese factory to measure lengths of spur and helical gears. The flatness and thinness of the discs allow for reliable measurements in tight spaces. The non-rotating spindle reduces torque on parts being measured and prevents workpiece deformation and wear. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Readings are displayed on an easy-to-read LCD readout.
Available in Metric and Inch/Metric models
Diameter of measuring discs is 20mm / .787”
Measuring surfaces are constructed of carbide to reduce wear
Ratchet mechanism provides an audible click to ensure measurement is performed at a constant force
SPC output function allows for quick and easy data management in real time
Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments
Includes a standard bar except for 0-15mm / 0-.6”, 0-25mm / 0-1”, and 0-30mm / 0-1.2” models
Supplied in fitted plastic case
Order No.:
Product Image:
Units:
Range:
Resolution:
Accuracy:
Disk Diameter:
Mass:
Graduation:
Flatness:
Parallelism:
Order No.:
369-250-30
—
Metric
0-25mm
0.001mm
±4µm
20 ømm
340g
0.01mm
1µm
4µm or less
369-251-30
Metric
25-50mm
0.001mm
±4µm
20 ømm
480g
0.01mm
1µm
4µm or less
369-252-30
—
Metric
50-75mm
0.001mm
±6µm
20 ømm
635g
0.01mm
1µm
6µm or less
369-253-30
—
Metric
75-100mm
0.001mm
±6µm
20 ømm
475g
0.01mm
1µm
6µm or less
369-350-30
Metric, Inch
0-1′ / 0-25.4mm
0.00005′ / 0.001mm
±0.0002′ / ±4µm
0.787 øinch / 20 ømm
340g
0.001′ / 0.01mm
1µm
0.00020′ or less / 4µm or less
369-351-30
Metric, Inch
1-2′ / 25.4-50.8mm
0.00005′ / 0.001mm
±0.0002′ / ±4µm
0.787 øinch / 20 ømm
480g
0.001′ / 0.01mm
1µm
0.00020′ or less / 4µm or less
369-352-30
—
Metric, Inch
2-3′ / 50.8-76.2mm
0.00005′ / 0.001mm
±0.0003′ / ±6µm
0.787 øinch / 20 ømm
635g
0.001′ / 0.01mm
1µm
0.00030′ or less / 6µm or less
369-353-30
—
Metric, Inch
3-4′ / 76.2-101.6mm
0.00005′ / 0.001mm
±0.0003′ / ±6µm
0.787 øinch / 20 ømm
475g
0.001′ / 0.01mm
1µm
0.00030′ or less / 6µm or less
369-250-30
369-251-30
369-252-30
369-253-30
369-350-30
369-351-30
369-352-30
369-353-30
Технические характеристики
Technology:
Digimatic
SPC Output:
Yes
Ratchet/Thimble:
Ratchet Stop
Measuring Force:
3-8N
Display:
LCD
Battery:
SR44 (1 pc.) 938882
Battery Life:
Approx. 2.4 years under normal use
Optional Accessories:
05CZA662, 05CZA663
Disc Micrometer-Non-Rotating Spindle — товар из ассортимента Laserzz для подбора и поставки под задачи ремонта и комплектации.
Позиция подходит для сценариев замены и закупки под конкретную спецификацию оборудования.
Для корректного выбора сверяйте маркировку, параметры и совместимость с вашей схемой/узлом.
