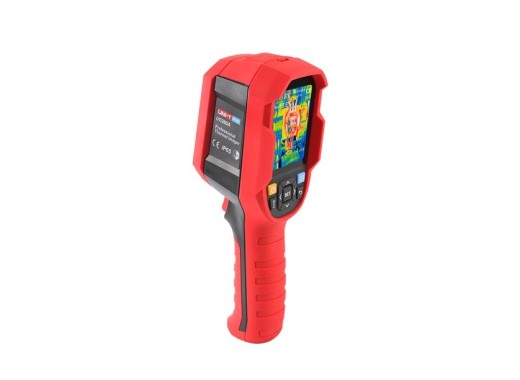

The UNI-T UTi720A is a thermal imaging camera with a resolution of 256 x 192 pixels and a temperature range of -20 to 400 °C. The camera features a 2.8 inch TFT LCD display with a resolution of 320 x 240 pixels and a refresh rate of 25 Hz. In addition, the UTi720A has a built-in digital camera with a resolution of 640 x 480 pixels. The 5000mAh Li-ion battery offers an operating time of at least 7 hours and can be fully charged whithin 5 hours ensuring plenty of usage time before it requires recharging.
The camera also offers important additional features such as: 7 color palettes, high/low temperature alarm, flashlight, pc software and up to 32 GB of storage with a micro SD card.
This thermal imaging camera is also known as the UNI-T UTi260A and it is the less expensive variant of the UTi260B.
Although this camera is an excellent choice, we recommend to consider the PC210 which outperforms the UTi720A at a bit higher price.
Specifications Range-20 to 400 °C Accuracy±2 °C or ±2% (whichever is greater) Focal distanceMin. 30 cm Response time40 ms Spot measurementCenter, 3 areas (max/min), auto spot tracking, alarm IR resolution256 x 192 (49152 pixels) NETD&le, 50 mK Detector typeVOX Focal plane array (FPA) Screen2,8 inch (320 × 240 pixels) BatteryAt least 7 hours Charge time0-100% in 5 hours Dimensions236 × 86 × 76mm (HxWxD) Net weight0.490kg In contrary to the UTi260B, the UTi720A thermal imaging camera does not have a visible light lens. Accessories
The UTi720A includes
- Charger
- USB-A to USB-C cable
- 16 GB MicroSD card
- Quick start guide
