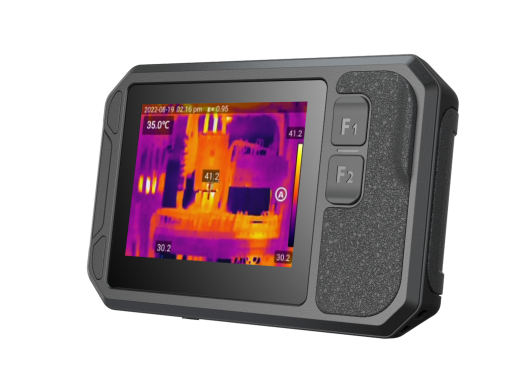

The Guide PF210 is a pocket-sized thermal camera with a 256 x 192 pixels infrared detector and a -20 °C to 550 °C temperature range. Morever, the thermal camera is a non-contact inspection tool which makes it great for finding hidden deficiencies of electrial equipment in a safe manner. Furthermore, the PF210 has a laser pointer and a laser rangefinder which provides an accurate range-to-target up to 8 metres and intelligent area calculation of a rectange object. Appealing features of the PF210 are a 3.5′ LCD touchscreen, a 4 hour battery life, and a built-in Wi-Fi function which allows users to share information quickly and easily. Finally, the thermal camera has an IP54 rating which means that it is protected from water sprays from all directions and against contamination from dust and other particles.
Specifications Temperature range-20 to 550 °C Accuracy ±2 °C or ±2% (whichever is greater) Focal distanceMin. 30 cm IR resolution256 x 192 (49152 pixels) NETD Frame rate25 Hz FOV56° x 48° Display3.5′ Colour palettesWhite Hot, Black Hot, Iron Red, Hot Iron, Rainbow, Arctic Image modesIR, VIS, MIF, PIP Storage16GB BatteryUp to 4 hours Dimensions138 x 89 x 34.4 mm Weight≤ 296 g Accessories
The Guide PF210 comes by default with:
- Carry case
- Wrist strap
- Power adapter
- Adapter plug
- Type-C USB cable
- Data download card
