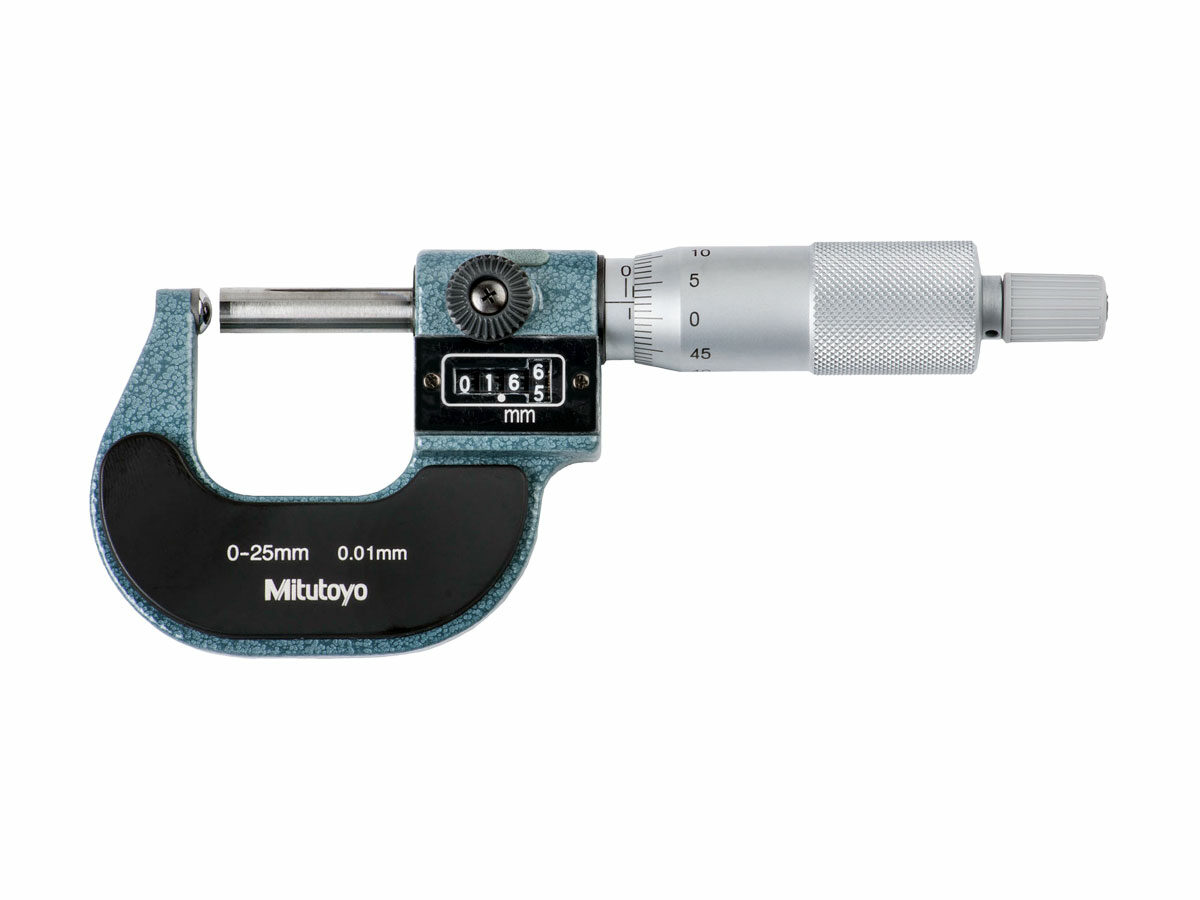

Spherical Face Micrometer-Spherical Anvil & Spindle

The Mitutoyo spherical face micrometer measures the thickness of curved parts within +/- 0.0001” for accuracy and displays readings on an analog mechanical counter. Available in inch or metric units.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!

The Mitutoyo spherical micrometer is available with either a spherical face on the anvil and a flat spindle measuring surface or with spherical measuring surfaces on the anvil and spindle, depending on the application. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error. The micrometer has a measurement range of 0 to 1.0″ (0 to 25.4mm), resolution of 0.00005″ (0.001mm), and an accuracy of +/- 0.0001″

  • Available in Metric and Inch models
  • Available with spherical anvil and flat spindle or with spherical anvil and spherical spindle
  • Measurements are displayed on a mechanical analog mechanical counter on the micrometer’s frame
  • Designed to measure the wall thickness of various tubing, curved parts and pipe wall thickness
  • Spherical measuring faces are 0.59” in diameter and carbide-tipped for durability
  • Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force
  • Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
  • Frame has a non-slip finish for better grip in shop environments
  • Includes a standard bar except for 0-1” and 0-25mm models
  • Supplied in fitted plastic case

Order No.:Product Image:Units:Range:Accuracy:Mass:Graduation:Anvil/Spindle:Flatness:Remarks:

Order No.:

115-115Metric0-25mm±3µm180g0.01mmS-F0.6µmD: 10mm
115-116Metric25-50mm±3µm240g0.01mmS-F0.6µmD: 11mm
115-117Metric50-75mm±3µm315g0.01mmS-F0.6µmD: 17mm
115-118Metric75-100mm±4µm375g0.01mmS-F0.6µmD: 18mm
115-153Inch0-1′±.00015′180g0.0001′S-FD: .40′
115-215Metric0-25mm±3µm180g0.01mmS-S0.6µmD: 10mm
115-216Metric25-50mm±3µm240g0.01mmS-S0.6µmD: 11mm
115-217Metric50-75mm±3µm315g0.01mmS-S0.6µmD: 17mm
115-218Metric75-100mm±4µm375g0.01mmS-S0.6µmD: 18mm
115-242Inch1-2′±.00015′240g0.0010′S-FD: .44′
115-243Inch2-3′±.00015′315g0.0010′S-SD: .67′
115-253Inch0-1′±.00015′180g0.0001′S-SD: .40′

115-115
115-116
115-117
115-118
115-153
115-215
115-216
115-217
115-218
115-242
115-243
115-253

Технические характеристики

Technology:Mechanical
SPC Output:No
Ratchet/Thimble:Rachet Stop
