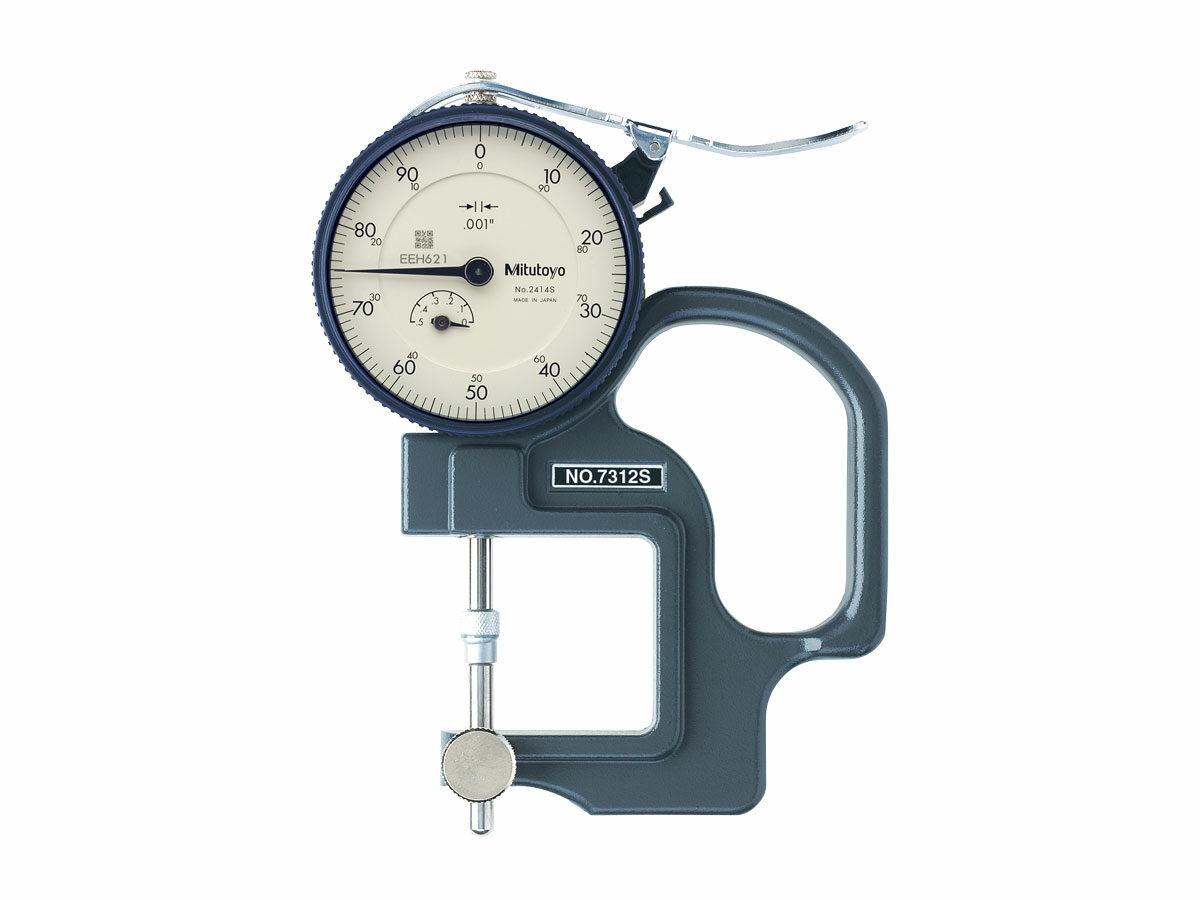

The Mitutoyo lens thickness measurement dial indicator uses a reversible anvil to measure the thickness of various lenses with high accuracy. The indicators’ contact points are coated in ceramic for durability and corrosion resistance. The grip handle, easy-to-reach lifting lever and spring-loaded spindle allows for faster, easier measurements without sacrificing accuracy. ty, and the white dial face is easier to read.
- Available in Metric and Inch models
- Easy to reach lifting anvil for effortless measurements
- White dial face for easier, precise measurement readings
- Anvil and contact point are made of ceramic for better corrosion resistance
- Measuring force is 1.4N or less
- Crystal is glare-free with a scratch-resistant coating
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Graduation: | Accuracy: | |
|---|
| 7312A | — | Inch | 0-0.5′ | 0.001′ | ±0.001′ |
| 7313A | — | Metric | 0-10mm | 0.01mm | ±15µm |
Технические характеристики
| Technology: | Mechanical |
|---|
| Measuring Force: | 1.4 or lessN |
|---|
| Reverse anvil: | Yes |
|---|
| Required Accessories: | — |
|---|
