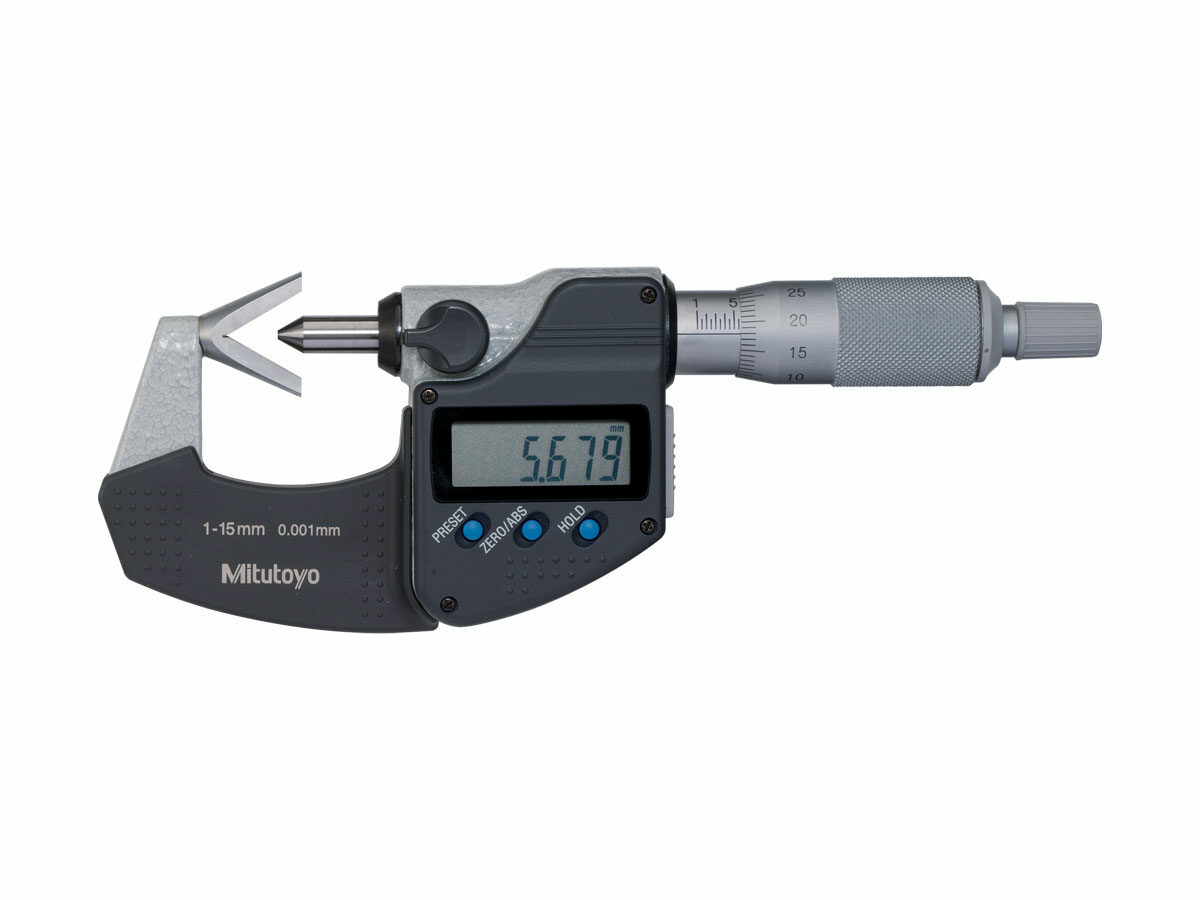

The Mitutoyo Digimatic V-Anvil digital micrometer pointed spindle and V-Anvil delivers precise position for highly accurate measurements. The anvil and spindle are precision milled from hardened steel for lasting, accurate results. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Measurements are displayed on an easy-to-read LCD readout.
Available in Metric and Inch/Metric models
V-Anvils with a centerline groove are available for measuring the pitch diameter of taps by the single-wire method
Ratchet mechanism provides an audible click to ensure measurement is being performed with a constant force
SPC output function allows for quick and easy data management in real time
Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, 2 Presets, Function Lock, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments
Supplied in fitted plastic case
Order No.:
Product Image:
Units:
Range:
Resolution:
Accuracy:
Mass:
Graduation:
Remarks:
Order No.:
314-251-30
Metric
1-15mm
0.001mm
±4µm
275g
0.01mm
w/Groove
314-252-30
—
Metric
10-25mm
0.001mm
±4µm
410g
0.01mm
w/Groove
314-253-30
—
Metric
25-40mm
0.001mm
±5µm
465g
0.01mm
—
314-261-30
—
Metric
1-15mm
0.001mm
±4µm
275g
0.01mm
—
314-262-30
—
Metric
10-25mm
0.001mm
±4µm
410g
0.01mm
—
314-351-30
Metric, Inch
.05-0.6′ / 1.27-15.24mm
0.00005′ / 0.001mm
±.0002′ / ±4µm
275g
0.0010′ / 0.01mm
w/Groove
314-352-30
—
Metric, Inch
0.4-1′ / 10.16-25.4mm
0.00005′ / 0.001mm
±.0002′ / ±4µm
410g
0.0010′ / 0.01mm
w/Groove
314-353-30
—
Metric, Inch
1-1.6′ / 25.4-40.64mm
0.00005′ / 0.001mm
±.00025′ / ±5µm
465g
0.0010′ / 0.01mm
—
314-361-30
—
Metric, Inch
.05-0.6′ / 1.27-15.24mm
0.00005′ / 0.001mm
±.0002′ / ±4µm
275g
0.0010′ / 0.01mm
—
314-362-30
—
Metric, Inch
0.4-1′ / 10.16-25.4mm
0.00005′ / 0.001mm
±.0002′ / ±4µm
410g
0.0010′ / 0.01mm
—
314-251-30
314-252-30
314-253-30
314-261-30
314-262-30
314-351-30
314-352-30
314-353-30
314-361-30
314-362-30
Технические характеристики
Technology:
Digimatic
SPC Output:
Yes
Ratchet/Thimble:
Ratchet Stop
Measuring Faces:
Carbide tipped (spindle only)
Display:
LCD
Battery:
SR44 (1 pc.) 938882
Battery Life:
Approx. 2.4 years under normal use
Remarks:
3-Flute
Optional Accessories:
05CZA662, 05CZA663
