Description

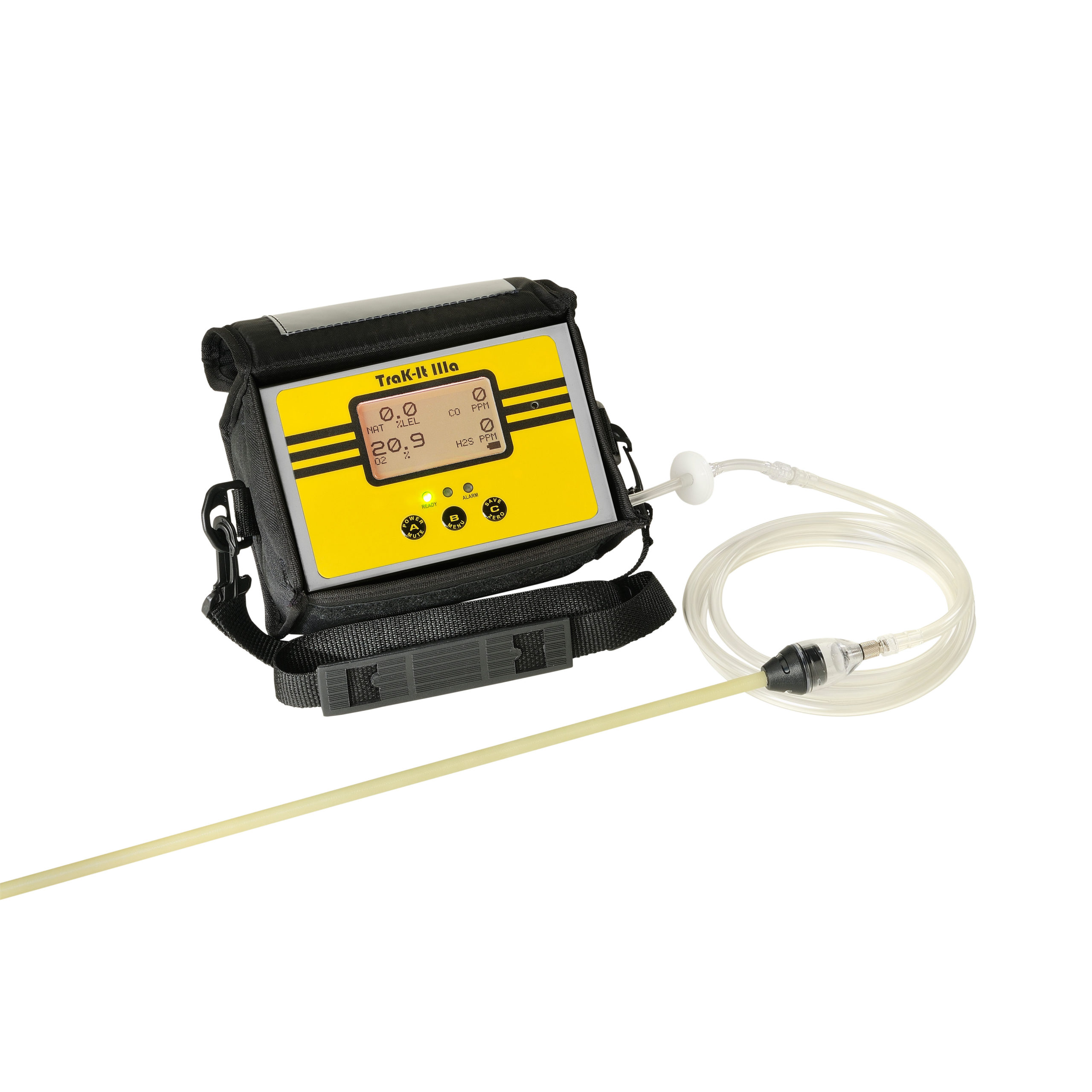

Trak-It® IIIa is the most durable Combustible Gas Indicator (CGI) available. It is used for performing gas leak surveys, underground gas leak identification, pipeline purging and is designed for use in confined space environments.
The instrument comes with an easy-to-read LCD display and can be configured for combustible gas readings in LEL (% Volume and PPM Optional) O2, CO, H2S, HCN (Optionally).
Trak-It® IIIa meets NFPA 54 National Fuel Code for Gas Pipe Purging.
Certifications for the instrument include ATEX, UL, and CSA.
Applications
- Gas Line Purge
- Underground Leak Pinpointing
- Gas Leak Investigations
- Carbon Monoxide Investigations
- Confined Space Monitoring
- Combustible Gas Measurements
Partial List of Gases Sensed
- Butane
- Carbon Monoxide
- Gasoline
- Hydrogen Sulfide
- Methane
- Natural Gas
- Oxygen
- Propane
Технические характеристики
Specs
PRODUCT SPECIFICATIONS
Size: 6.5 x 4 x 4.25 (16.5 x 10.2 x 10.8 cm)
Weight: 2.8 lb. (1.27 kg)
Operational Temp: -4 to 104 F (-20 to 40 C)
Battery Life: Alkaline: Approximately 25+ hrs. Continuous
SENSOR SPECIFICATIONS
| TYPE | RESOLUTION | RANGE | ACCURACY |
| PPM* | 5 ppm | 0-2,000 ppm | ±,10% |
| LEL | 0.1% up to 2% | 0-100% LEL | ±,10% |
| % NAT GAS | 0.1% | 5.0-100% GAS | ±,5% |
| O2 | 0.1% | 0-25% | ±,0.2% or 10%** |
| CO | 1 ppm | 0-2000 ppm | ±,5 ppm or 5%** |
| H2S | 1 ppm | 0-100 ppm | ±,2 ppm or 5%** |
| HCN | 1 ppm | 0-30 ppm | ±,2ppm or 5%** |
*PPM Optional ** Whichever is greater
