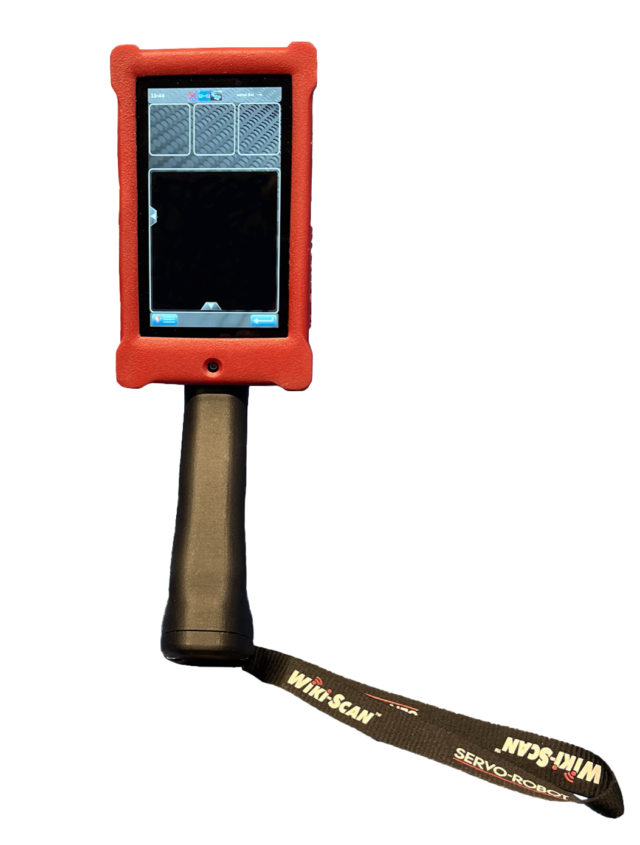

Description Wiki-Scan, a handheld wireless system, improves the reliability of the welding inspection process. While the current method of weld inspection involves mechanical gauges, the WiKi-SCAN is a laser-based tool that can inspect any weld and provide more information than is currently available. It can measure part fit-up prior to welding to insure that the joint preparation is suitable within procedure requirements. When using the WiKi-SCAN, a 3D scan of joints and weld beads are measured for a variety of features including size, porosity and undercut. These results can be augmented with a picture of the weld, voice recording, and comments saved directly to the WiKi-SCAN. All records can be filtered by date, and if the weld fulfilled the standards and tolerance limits set.
The WiKi-SCAN makes it easier to determine the size and number of defects and compare them to the applicable welding standard. Some of the many benefits of the WiKi-SCAN include eliminating inaccurate and unrepeatable inspections, saving money by reducing over-welding, and allowing the user to inspect a weld while the part is hot.
This new technology will speed up the inspection process and verify if welds and repairs are done correctly per the applicable Welding Standard.
The Wiki-SCAN welding inspection system is designed to be used in the field to improve the reliability and speed of inspections in manufacturing industries.
BENEFITS• Any weld inspector will be proficient with the Wiki-SCAN within minutes,• Real-time viewing for rapid evaluation of a joint or a weld• The weld inspection record can be sent through Wi-Fi to anywhere in the world• Fatigue critical features such as toe angle, undercut, and cracks can be quickly measured• Over welding can be quantified so excessive welding time, consumable and energy usage can be reduced thus saving money• Can inspect any weld the operator’s hand can reach
Технические характеристики
Specs
WiKi-SCAN 2.0 Specifications:
FOV Depth: 4.7 (120 mm)
FOV with Close Plane: 1.57 (40 mm)
FOV with Far Plane: 3.3 (84 mm)
Dimensions: 11.6 x 3.8 x 3.23 (294 x 96 x 82 mm)
Dimensions with Wheel: 11.6 x 3.8 x 7.4 (294 x 96 x 188 mm)
Weight: 2 lbs (920 g)
Weight with Encoder: 2.2 lbs (1000 g)
Operating Temp: 41 — 104 F (5 — 40 C)
