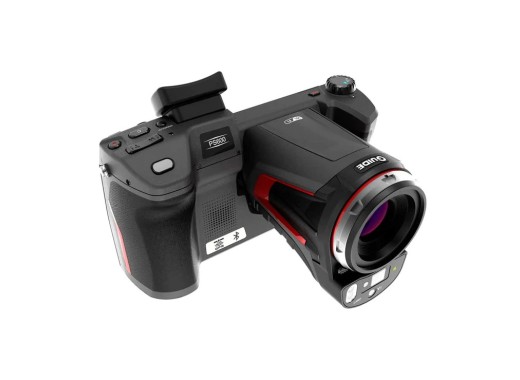

The Guide PS600 thermal camera with a rotatable screen can measure the temperature in a wide range of -40°C-800°C and has an extremely high IR resolution of 640 x 480 pixels. With its rotatable lens, the PS600 can make both high-quality photos and videos which can be transferred via Wi-Fi to your device for further analysis. The video material can be captured in MP4 format with audio or in lrgd format for temperature analysis. Moreover, this thermal camera provides a very fast operation by using the focus motor and professional laser rangefinder to achieve autofocus in only 0.4 seconds. The PS600 also has AI voice recognition and provides four image modes: IR, visible light, PIP, and MIF. Finally, to achieve high-quality imaging, the infrared pixel count can be increased to 4 times its original value.
Additional accessories for the PS600 can be ordered by contacting Eleshop through email.
Specifications Temperature range-40 to 800 °C Accuracy ±2 °C or ±2% (whichever is greater) Focal distance25 mm IR resolution640 x 480 (307200 pixels) NETD≤40 mK Frame rate30 Hz / 9 Hz FOV25° x 19° External interfaceType-C, DC (12V), SD card slot, Network port, Micro HDMI, UNC ¼ ‘-20 (Tripod mounting) Laser630~670nm, Class 2 laser, ＜1mW, indicating the measured target and laser ranging Display5’ LCD Colour palettesWhite Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black, Hot, Customized StorageLocal storage (64 GB) and SD card (64 GB and up to 128 GB) Battery≥4 hours Dimensions206 × 145 × 135 mm Weight1.35 kg (with battery) Accessories
The PS600 comes by default with:
- Lens cover
- Lithium-ion battery
- Power adapter
- Adapter plug
- Type-C USB cable
- Micro HDMI cable
- Network cable
- Data download card
- SD card (64 GB)
- Shoulder strap
- Carrying case
