Features:
- Dual independent or tracking 600 watt outputs
- Ultra-wide range of voltage/current combinations
- Up to 80V and up to 50A within each power envelope
- Isolated tracking of voltage only, or voltage and current
- Smart metering and tracking functions facilitate
- series or parallel wiring for up to 160V or 100A
- Low output noise and ripple
- High setting resolution of 1mV
- Variable OVP and OCP trips
- Analog control interfaces for voltage and current
- GPIB, RS-232, USB and LAN (LXI) interfaces (QPX600DP)
Specifications:
- Voltage: 80 Volts
- Power: 600 Watts
- Current: 50 Amps
- O/P»s: 2

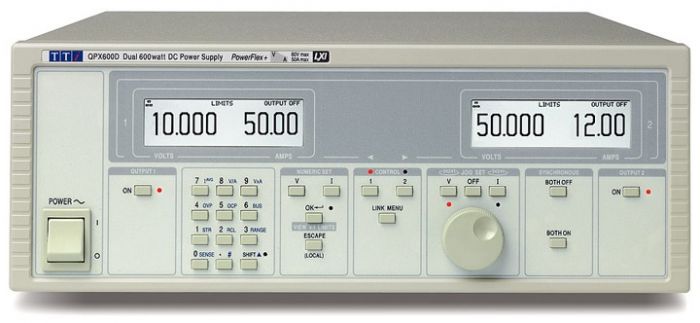

The QPX600D is a 80 V, 600 W, 50 A dc power supply from Thurlby Thandar Instruments. The QPX600D is a dual output dc power supply with a maximum total output power of 1200 watts and is suited to both bench-top and system applications. The QPX600DP incorporates full digital remote control using USB, RS-232, LAN and GPIB interfaces. Both models include analog remote control.
Технические характеристики
| Manufacturer | Thurlby Thandar Instruments |
|---|---|
| Condition | New |
| Current | 50 A |
| Voltage | 80 V |
| Power | 600 W |
