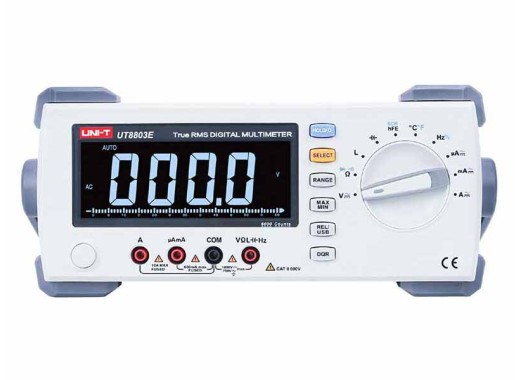

The UT8803E from UNI-T is a fully-featured true-RMS 6000 counts benchtop multimeter that in addition to temperature and frequency is also capable of measuring capacitance and inductance including the Q-factor. This multimeter comes with free PC software with which you can record data and plot it into a graph.
The multimeter has a big and bright screen which makes it very easy to read measurements and the dial allows for easy mode switching.
Specifications Range and accuracy Specification Range Accuracy Max. DC Voltage 1000 V ±(0.5% + 2) Max. AC Voltage 750 V ±(0.6% + 5) Max. DC Current 10A ±(0.8% + 3) Max. AC Current 10A ±(1.0% + 5) Max. Resistance 60 M ±(0.8% + 5) Temperature -40 °C — 1000 °C ±(2% + 5) Max. Capacity 6 mF ±(2.5% + 5) Inductance 0.1&mu,H — 100 H ±(2.5% + 5) Frequency 0.1 Hz — 20 MHz ±(0.1% + 10) True-RMS Yes Extra functions duty cycle, continuity test, diode test, hFE, thyristor measurement Power AC 100-240V 50Hz Display 6000 counts, 4.5′ LCD Refresh rate 3 Hz Connectivity USB interface Safety CAT.II 600V Weight 3100 g Dimensions 320 x 265 x 110 mm Accessories
The UNI-T UT8803E multimeter comes with the following accessories:
- UT-S03A socket
- Test Lead
- Alligator clip
- USB interface cable
- Power Cable
