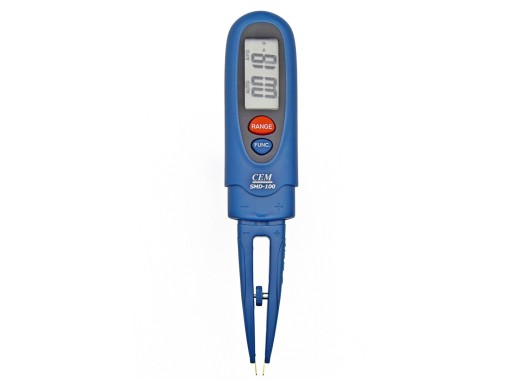

The CEM SMD-100 components tester can measure voltage in DC or AC as well as resistance, capacitance, diode and continuity. It will start measuring and select the correct function automatically once it is in contact with the component. The display has a range of 6000 counts. There are three possibilities for recording: holding the current value, recording the maximum or recording the minimum. Once the components tester is not in use it will automatically turn off.
Specifications Range and accuracy FunctionRangeBest achievable accuracy Max. DC voltage (V)50 V±(0.5% + 2 digits) Max. AC voltage (V)50 V±(0.8% + 3 digits) Max. Resistance (Ω)60 MΩ ±(1.5% + 8 digits) Max. Capacitance (F)60 mF±(3% + 5 digits) Measurement category600 V CAT III Counts6000 Continuity check Dimensions184 x 37 x 23 mm Weight 76 g Accessories
The CEM SMD-100 includes:
- 2 x LR44 batteries
- Protective cover
