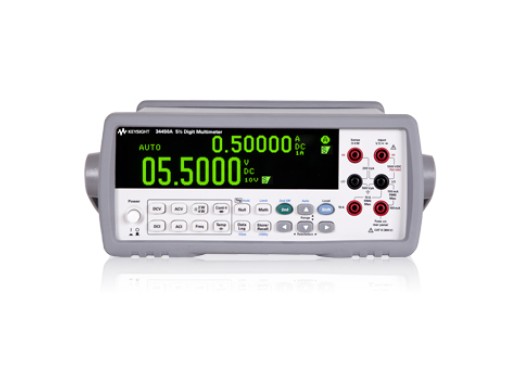

The Keysight 34450A is one of the fastest multimeters in its class. It can take up to 190 measurements per second, with a DCV precision of 0.015% with a 5½, digit display.
The 34450A can perform 11 different measurements including 4-wire resistance measurements, frequency, capacitance and more.
On the clear OLED display the data can be read in every situation. With the dual-display two measurements can be taken at the same time. In addition, it is possibe to display additional information, such as a histogram of stored values.
The 34450A has access to 50,000 memory positions, allowing it to log up to 14 hours of data on its own. In addition, the meter can be connected to a computer via USB or RS-232. Via this connection, the multimeter can communicate with, for example, LabView of NI.
Specifications Measuring range and precision Max. DC Voltage 1000 V (±,0.015%+0.005) Max. AC Voltage 750 V (±,0.02%+0.02) Max. DC Current 10 A (±,0.5%+.007) Max. AC Current 10 A (±,0.02%+0.02) Max. resistance (2-wire) 10 k (±,0.050%+0.008) Max. resistance (4-wire) 100 M (±,0.05%+0.005) Frequency 119,999 Hz ~ 1.1999 MHz Temperature 80.0 C to 150 C (±,0.2 C) Max. capacitance 10 F(±,0.02%+0.001) Resolution 5½, digits Math functions Null, dBm, dB, Min/Max/Avg, hold, limit test Connectors USB, RS-232 Display OLED Dual-display Weight 3.75 kg Dimensions 103.8 x 261.1 x 303.2 mm Accessories
- Power cord
- USB cable
- Testing wires
- CD-Rom with User Guide and software
- Quick start guide (English)
- Product and calibration certificate
