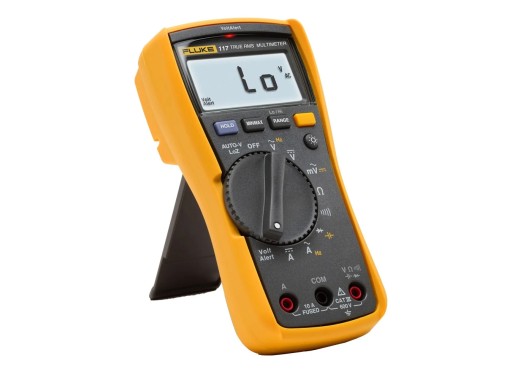

The rugged Fluke 117 multimeter has the quality you’ve come to expect from Fluke and is a must-have for any electrician. In addition to all the standard measurement features, this multimeter also has a VoltAlert technology that allows contactless voltage detection and a low impedance mode that makes sure that no ghost voltages get measured. Furthermore, the multimeter has a min, max, and average hold function which makes analyzing signal fluctuations easy.
This multimeter has a large backlit 6000 counts display on which the values, even in dark environments, can easily be read. In addition, the values on the screen are updated every 4 seconds and the meter has a 33 segment bar graph. The meter is powered by a 9-volt battery and has a working time of ~400 hours (without backlight).
Don’t need the non-contact voltage detection and low impedance mode? Check out the cheaper Fluke 115.
Specifications Measuring range and accuracy Max. DC voltage600 V (±, 0.5% + 2) Max. AC voltage600 V (±, 1.0% + 3) True-RMS Max. DC current10 A (±, 1.0% + 3) Max. AC current10 A (±, 1.5% + 3) True-RMS Max. Resistance40 M (±, 0.9% + 1) Max. Capacitance9.999 F (±, 1.9% + 2) Frequency0.01 Hz ~ 50 kHz (±, 0.1% + 2) When measuring currents, values up to 20 A can be measured for max 30 seconds. Afterwards the meter needs to cool for at least 10 minutes. Other functionalities Diode tests, continuity, VoltAlert, LoZ-AutoVolt Input protection IEC 61010-1 600 V CAT III, Pollution Degree 2 Display 6,000 counts Battery lifespan ~400 hours Dimensions 167 x 84 x 550 mm Weight 550 g Accessories The Fluke 117 will standard be delivered including:
- 1x test lead set
- 9V battery
Fuse information This multimeter uses a 11A 1000V fuse (included).
