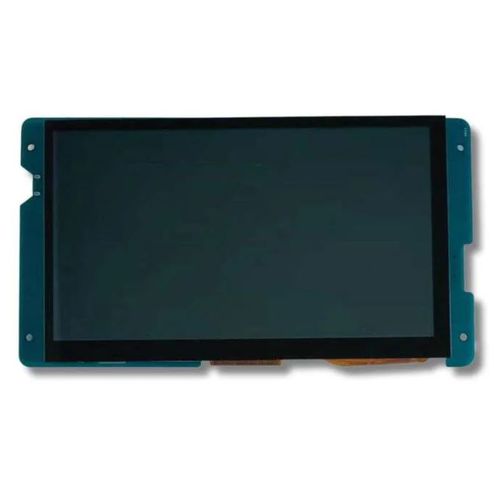

TBZ070C024600-01 | 7-inch UART LCD with CTP | 1024×600 Pixels| IPS| The 7″ smart TFT LCD with UART interface supports both capacitive touch screen and resistive touch screen options. Three Methods to update the UART display, SD Card, USB, and UART port to update. Support remote protocol communication control and update. The material is RoHS-compliant. Screen Diagonal (inch): 7 Resolution (pixel): 1024×600 Display Type: IPS Display Mode: Transmissive Optimal View: Full View Touch Screen: Capacitive Touch / Resistive Touch PCBA Dimension (mm) (W x H x D): 188.9×105.1×9.6 LCD Module Dimensions (mm) (W x H x D): 164.9x100x5.5 Active Area (mm) (W x H): 154.2×85.9 Luminance (cd/m2): 200 Interface: UART Input Voltage (V): 4.5 ~ 18 Operational Temperature (°C): -10 ~ +60 Storage Temperature (°C): -20 ~ +80
Технические характеристики
CharacteristicsTypeLCD/TFT, IPS, capacitive touch screen, resistive touch screenFormat1024 x 600Screen size7Applicationsindustrial, for medical equipmentOther characteristicsUART, Modbus, smart, integratedWidth
188.9 mm (7.437 in)
Height
105.1 mm (4.1378 in)
