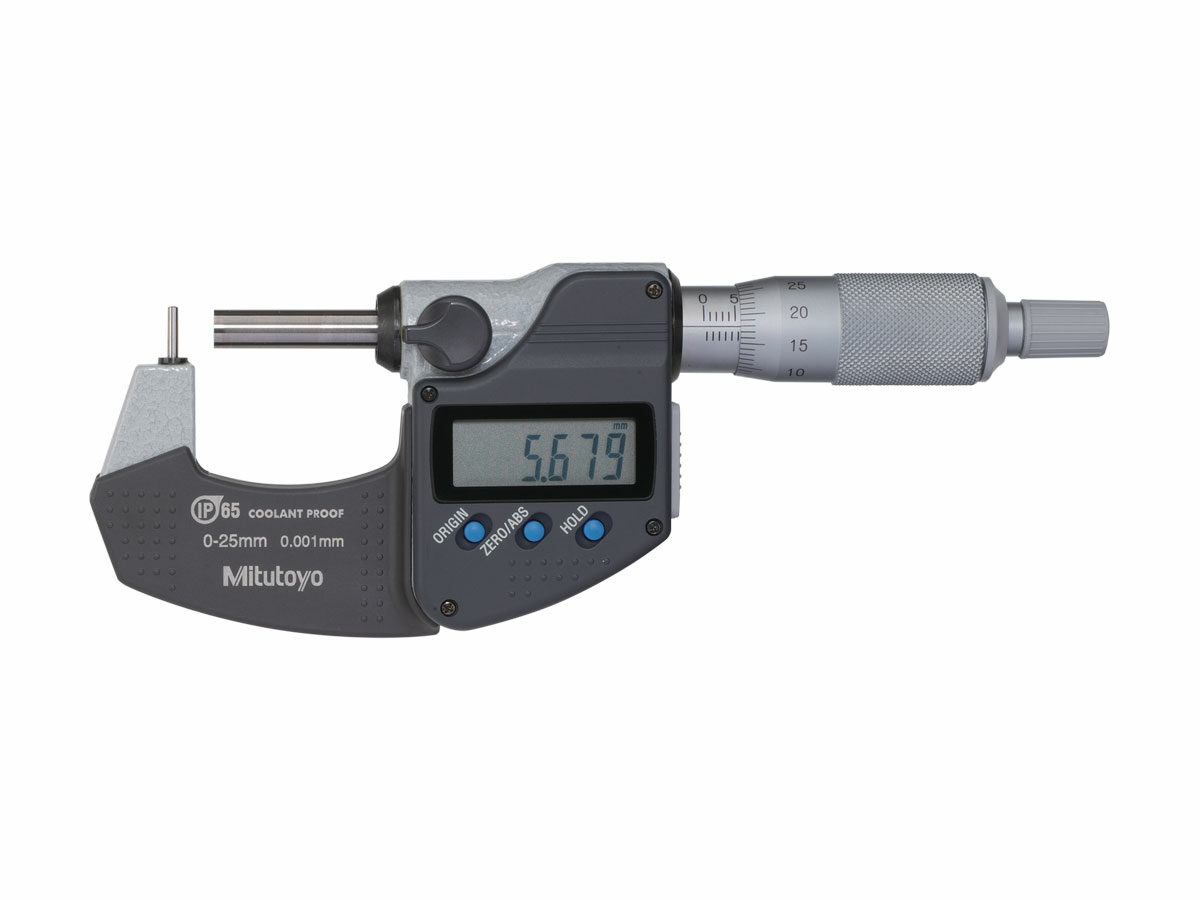

Tube Micrometer-Cylindrical Anvil

The Mitutoyo Digimatic digital tube micrometer is available with either flat or spherical measuring face options to measure the wall thickness of various tubes. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.

• Available with pin, spherical and cylindrical anvils
• Available in Metric and Inch/Metric models
• Designed to measure the wall thickness of various tubing
• Measuring surfaces are constructed of carbide to reduce wear
• IP65 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for most shop floor environments
• Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force
• SPC output function allows for quick and easy data management in real time
• Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/mm conversion (on inch/metric models only)
• Alarm: Low Voltage, Counting Value Composition Error
• Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
• Frame has a non-slip finish for better grip in shop environments
• Includes a standard bar except for 0-25mm and 0-1” model
• Supplied in fitted plastic case
