Additional Features:
- Voltage: 0-75V
- Current: 16A
- Power: 1200W
- Switch mode topology for cool, efficient operation
- Built-in GPIB, RS232 and isolated analog programming at no extra cost
- 1U panel height at 1200 watts
- Front to back air flow allows full power operation without spacers between supplies
- Wide-range a-c input, 88-265V a-c with PFC

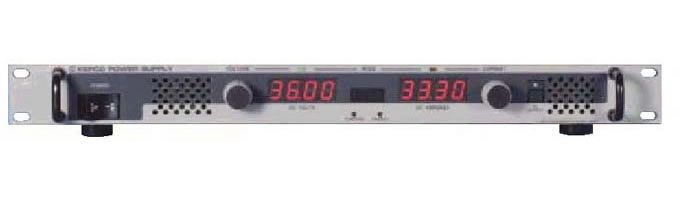

The KLP75-33-1200 is a laboratory grade power supply in which the voltage/current limits are automatically recalculated, forming a constant-power hyperbolic shaped boundary between the voltage and current modes. This curve, which replaces the single max-power operating point of conventional power supplies, provides the user with a greatly expanded choice of maximum power volt-ampere combinations. The constant-power limit of the KLP is 1200 watts. The KLP saves money and space by reducing the number of power supplies required.
Технические характеристики
| Manufacturer | Kepco |
|---|---|
| Condition | Used |
| Current | 16 A |
| Voltage | 75 V |
| Power | 1.2 kW |
