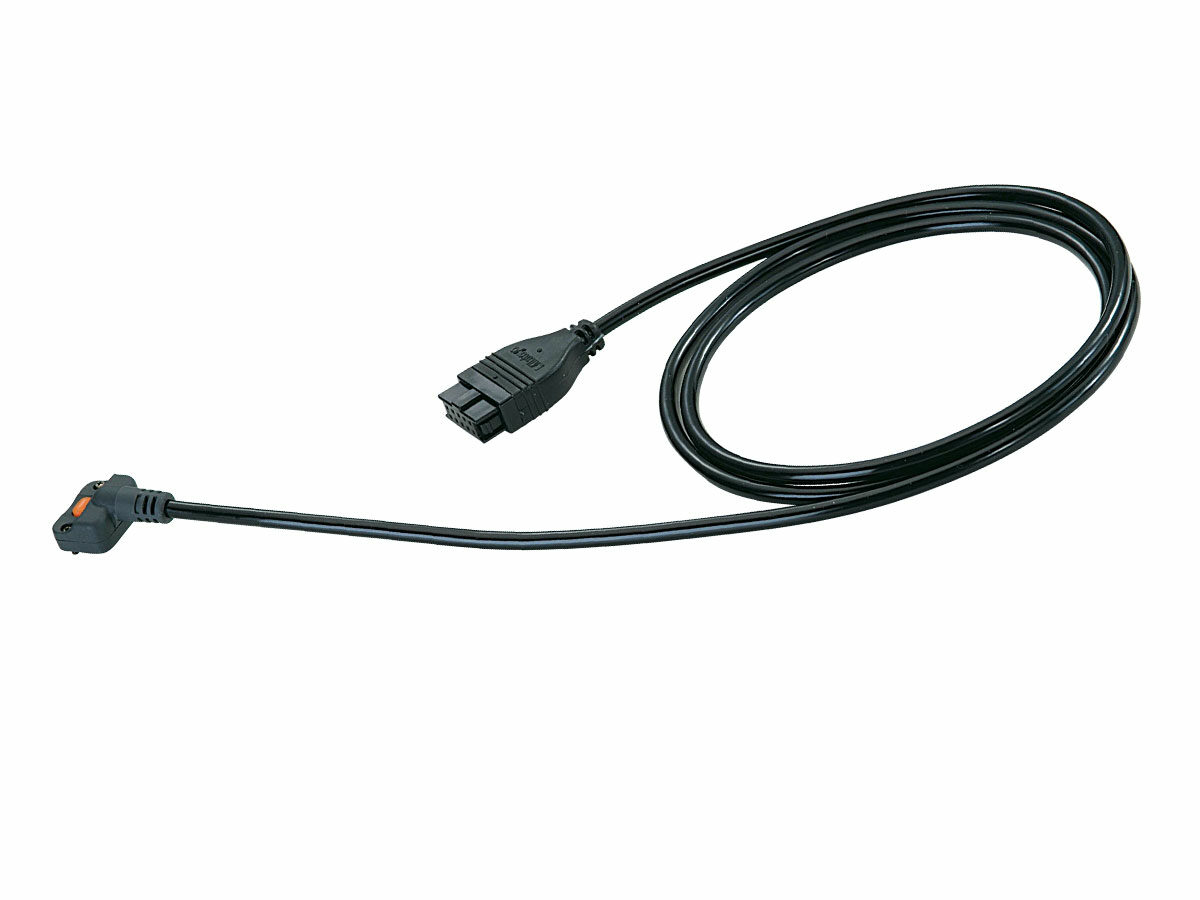

The Mitutoyo SPC cables are used to output measurement data from the Digimatic gage with the output feature to the Digimatic mini processor, Digimatic display unit, multiplexer or other device.
- Cables of one or two meters are available
- Note: the shape of connector differs depending on the model
| Order No.: | Product Image: | Cable Length: | Connection Type: | Data send switch Included: | Angle Direction: |
|---|
| Order No.: |
|---|
| 05CZA624 |  | 1m | A | Yes | Straight |
| 05CZA662 |  | 1m | B | Yes | Back |
| 959149 |  | 1m | C | Yes | Straight |
| 936937 |  | 1m | D | No | Straight |
| 937387 |  | 1m | E | No | Straight |
| 905338 |  | 1m | F | No | Straight |
| 905689 | — | 1m | F | No | Back |
| 905691 |  | 1m | F | No | Right |
| 905693 | — | 1m | F | No | Left |
| 21EAA194 | — | 1m | G | No | Straight |
| 05CZA625 |  | 2m | A | Yes | Straight |
| 05CZA663 | — | 2m | B | Yes | Back |
| 959150 |  | 2m | C | Yes | Straight |
| 965014 |  | 2m | D | No | Straight |
| 965013 |  | 2m | E | No | Straight |
| 905409 | — | 2m | F | No | Straight |
| 905690 | — | 2m | F | No | Back |
| 905692 | — | 2m | F | No | Right |
| 905694 |  | 2m | F | No | Left |
| 21EAA190 | — | 2m | G | No | Straight |
| 05CZA624 |
| 05CZA662 |
| 959149 |
| 936937 |
| 937387 |
| 905338 |
| 905689 |
| 905691 |
| 905693 |
| 21EAA194 |
| 05CZA625 |
| 05CZA663 |
| 959150 |
| 965014 |
| 965013 |
| 905409 |
| 905690 |
| 905692 |
| 905694 |
| 21EAA190 |
