Соединительный блок/кабель U-WAVE

Передатчик Mitutoyo U-Wave подключается к различным измерительным инструментам и инструментам Mitutoyo с помощью специального соединительного кабеля или соединительного блока.

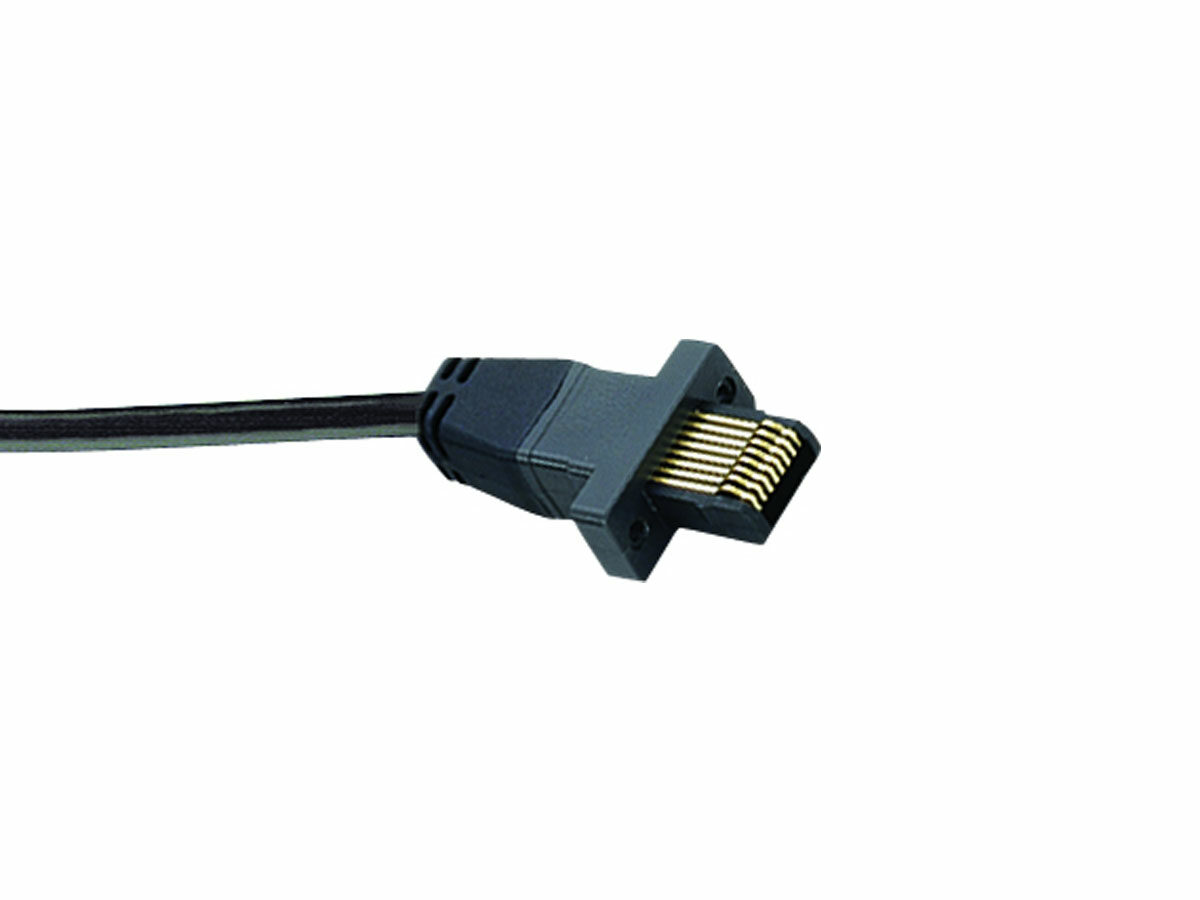

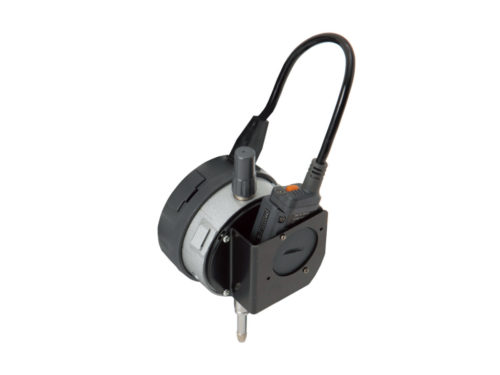

A short cable is used to connect any Mitutoyo digital caliper, micrometer, indicator or height gage to a Mitutoyo U-Wave transmitter. These cables match specifically to the measuring tool, and are available as conventional connecting cables or cables with a foot switch for easier data collection. Fastening clips are included with cables when necessary. U-WAVE Fit and U-WAVE Bluetooth™ models eliminate the connection cable altogether with a connection unit for a homogenous attachment to the tool and transmitter.

Order No.:	Product Image:	Model:	Connection Type:	Transmitter Required:	Fit Transmitter Only:	For footswitch connection:	For standard connection:	Data send switch Included:

Order No.:

02AZD790A	—	Connection Cable	A	Yes	—	—	x	Yes
02AZD790B	—	Connection Cable	B	Yes	—	—	x	Yes
02AZD790C	—	Connection Cable	C	Yes	—	—	x	Yes
02AZD790D	—	Connection Cable	D	Yes	—	—	x	Yes
02AZD790E	—	Connection Cable	E	Yes	—	—	x	Yes
02AZD790F	—	Connection Cable	F	Yes	—	—	x	Yes
02AZD790G	—	Connection Cable	G	Yes	—	—	x	Yes
02AZE140A	—	Connection Cable with footswitch port	A	Yes	—	x	—	Yes
02AZE140B	—	Connection Cable with footswitch port	B	Yes	—	x	—	Yes
02AZE140C	—	Connection Cable with footswitch port	C	Yes	—	x	—	Yes
02AZE140D	—	Connection Cable with footswitch port	D	Yes	—	x	—	Yes
02AZE140E	—	Connection Cable with footswitch port	E	Yes	—	x	—	Yes
02AZE140F	—	Connection Cable with footswitch port	F	Yes	—	x	—	Yes
02AZE140G		Connection Cable with footswitch port	G	Yes	—	x	—	Yes
02AZF300	—	Connection unit	C	Yes	Yes	—	—	Yes
02AZF310	—	Connection unit	A/B	Yes	Yes	—	—	Yes
