Description

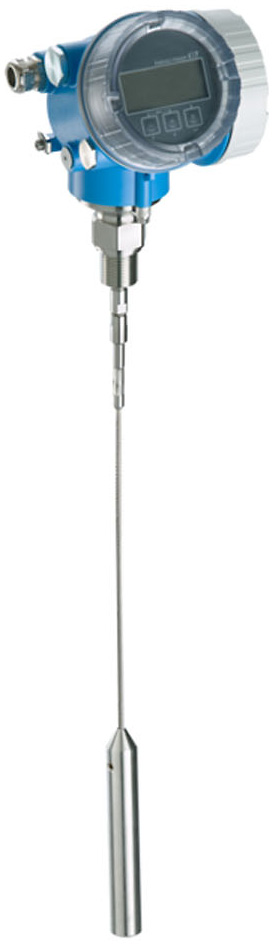

The E+H Levelflex FMP56 guided wave radar level transmitter is designed for light-duty process conditions as they occur in silos and storage tanks for solids. The Levelflex FMP56 is used for continuous level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement. The FMP56 guided radar offers maximum reliability even in dusty atmospheres in narrow silos or in vessels with obstacles.
The FMP56 also offers HistoROM data management for fast and easy commissioning, maintenance and diagnostics, and Heartbeat technology for cost-effective and safe plant operation during the entire life cycle.
Технические характеристики
Features
- Rope probe
- -40 to 248°F (-40 to 120°C) process temperature
- -14.5 to 232 psi (-1 to 16 bar) process pressure
- 40ft (12m) maximum measuring distance
- ±0.08in (±2mm) accuracy
- International explosion protection certificates
- 3-point and 5-point linearity protocol
- Bluetooth wireless technology
- Heartbeat technology
