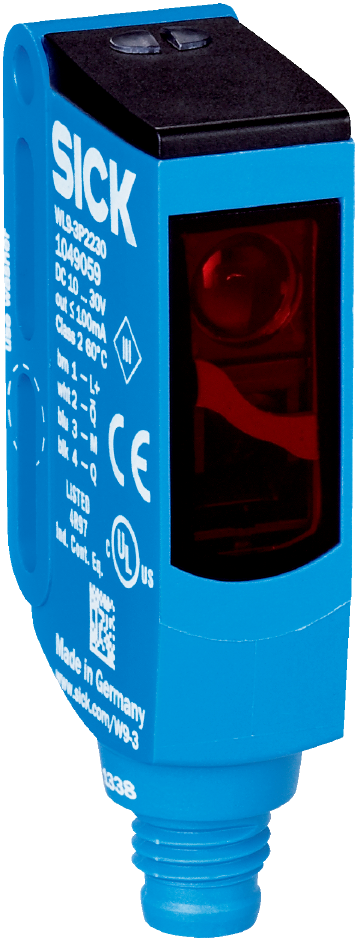

Sick WL9L-3N2432
Datasheet:
- Article: 1058173
- Device type: Photoelectric sensors
- Sensor/detection principle: Reflective sensor, Autocollimation
- Dimensions (W x H x D): 12.2 mm x 52.2 mm x 23.6 mm
- Housing shape (light output): Rectangular
- Hole pattern: M3
- Operating distance, max.: 0 m … 12 m
- Sensing distance: 0 m … 8 m
- Type of radiation: Visible red light
- RADIATION SOURCE: Laser
- Light spot size (distance): Ш 1 mm (500 mm)
- Wavelength: 650 nm
- Laser class : 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Setting: Setting button
- Special applications: Small object detection
- Supply voltage : 10 V DC … 30 V DC
- Residual ripple: ss
- Current consumption: 30 mA
- Switching output: NPN
- Output signal function: Complementary
- Switching type: LIGHT/DARK
- Output current Imax: ? 100 mA
- Rating: ? 0.5 ms
- Switching frequency: 1.000 Hz
- Connection type: M12 connector, 4-pin
- li>Protection circuits: A, B, C,
- Protection class: III
- Weight: 13 g
- Polarizing filter: ?
- Case material: Plastic, VISTAL®
- Material, optics: Plastic, PMMA
- Protection type: IP66, IP67, IP69K,
- Temperature range during operation: –10 °C … +50 °C
- Operating temperature range, extended: –30 °C … +55 °C
- Storage temperature range: –30 ° C … +70 °C
- UL File No.: NRKH.E181493
- MTTFD: 723 years (EN ISO 13849-1) li>
- DCavg: 0%
- Series:W9
- Sensing distance:0 … 8 m
- Output type:NPN
- Type of emission: visible red light
