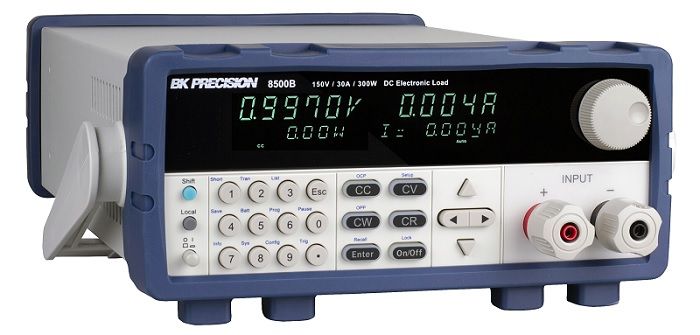

8500B BK Precision DC Electronic Load

Features:

• 300 Watts
• 150 Volts
• 30 Amps
• 3 year warranty
• Maximum input power 300 W
• CC/CV/CR/CW operating modes
• 16-bit voltage and current measurement system providing up to 0.1 mV / 0.1 mA resolution
• Transient mode up to 10 kHz in CC mode
• List mode function for custom step sequences
• Supports both SCPI and backwards compatible 8500 series protocol
• Store and recall up to 100 instrument settings
• Adjustable slew rate in CC mode
• Flexible triggering options via front panel, external input, timer, or bus
• Built-in battery test function, specify cut-off voltage, capacity level, and time
• Test modes to validate the OCP/OPP protection functions of a power supply
• OVP/OCP/OPP/OTP including local and remote reverse voltage (LRV/RRV) protection
• Remote sense
• Short-circuit test
• Analog current control and monitoring
• Two thermostatically controlled fans (linear-speed control to minimize noise)
• TTL (DB9) interface with USB adapter
• Integrated meter measures voltage, current, & power
• Rack-mountable

Accesssories:

• Power cord
• certificate of calibration
• USB to TTL serial converter IT-E132B
• USB cable

Applications:

• Performance verification of photovoltaic solar panels
• CR-LED mode to simulate loading behavior and test LED drivers
• Fuel and solar cell tests
• Battery test and power supply evaluations

The BK Precision 8500B is a programmable DC electronic load that improves upon all aspects of its predecessor while maintaining dependability at a value price. This series supports both SCPI and the backwards compatible legacy protocol and includes a TTL to USB interface adapter for easy system integration. With a transient mode speed of up to 10 kHz and multi-type input terminals for banana plug or spade connectors, these DC loads are suitable for testing and evaluating DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.
