| Provide on-line monitor and analysis functions (for DP832/DP831/DP821/ DP811, for the other models, this is a standard accessory) |
| Provide high-resolution setting (for DP832/DP831/DP821/DP811, for the other models, this is a standard accessory) |
| Provide RS232 and LAN communication interfaces (for DP832/DP831/DP821/ DP811, for the other models, this is a standard accessory) |
Features:
- CH1 — 0 to 30V/0 to 3A
- CH2 — 0 to 30V/0 to 3A
- CH3 — 0 to 5V/0 to 3A
- Low ripple and noise: <,350uVrms/3mVpp
- Excellent linear regulation rate and load regulation rate
- Fast transient response time: <,50μs
- Some channels are isolated
- Standard OVP/OCP/OTP protection functions
- Standard timing output
- Built-in V,A,W measurements and waveform display
- Independent control for each channel
- Support more advanced functions: timer and delay output(standard), recorder/analyzer/monitor/trigger (standard in models with ‘A’ and optional in other models)
- 3.5 inch TFT display
- Various interfaces: USB Host&Device (standard), USB-GPIB (optional), LAN/RS232/Digital IO(standard in models with ‘A’ and optional in other models)
- 3 year warranty, excluding accessories
Accessories:
- Power Cord
- USB Cable — CB-USBA-USBB-FF-150
- Fuse 50T-032H 250V 3.15A (DP832A/DP832/DP811A/DP811), Fuse 50T-025H 250V 2.5A (DP831A/DP831/DP821A/DP821) —
- Short-circuit Equipment — (DP821A/DP821/DP811A/DP811) —
- Quick Guide (Hard Copy)
- Digital I/O Interface Connecting Terminal — Terminal-Digital I/O-DP800
Applications:
- R&D lab general purpose testing
- Quality control and assessment
- Pure power for RF/MW circuits or components
- Power supply for automobile electronic circuit test
- Production automation testing
- Device or circuit characteristic verification and troubleshooting
- Educational experiment

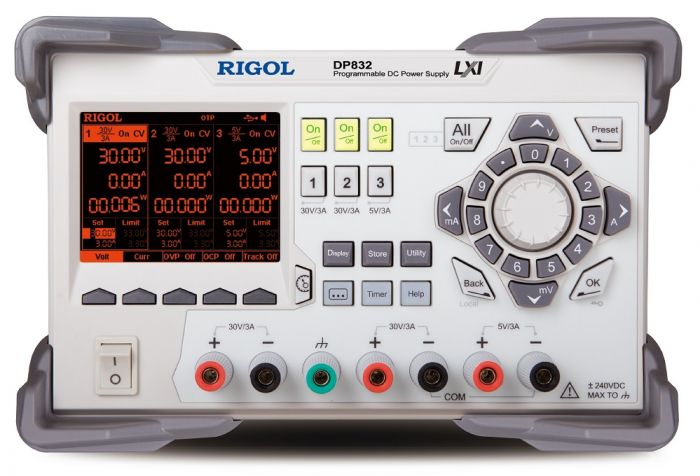

The Rigol DP832 is a DC power supply.
Технические характеристики
| Manufacturer | Rigol |
|---|---|
| Condition | New |
| Current | 3 A |
| Voltage | 30 V |
| Power | 195 W |
