Description

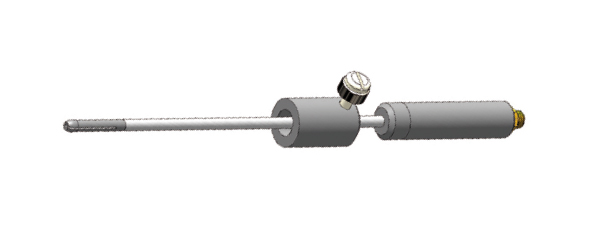

The Waygate Technologies Krautkramer Manual Fastener Hole Eddy Current Probe, Absolute, a Baker Hughes business product (formerly GE Inspection Technologies), is used to inspect the inner surfaces of fastener holes for defects. These probes have a split tip to accommodate hole sizes of +1 mm on probes under 7 mm in diameter and holes +1.6 on probes larger than 7 mm. The standard working length for the Manual Fastener Probe is 76 mm, but non-standard working lengths may be requested. Frequencies come in 200 kHz or 2 MHz and materials are NFe or Fe/NFe. This probe offers a wide variety of hole diameters, like 4.5 mm, 6.4 mm, 7.5 mm, 9.5 mm, 12.7 mm, and 15.5 mm.
Probes available from 3.2mm (1/8”) to 38mm (1 1/8”) in all frequencies.
