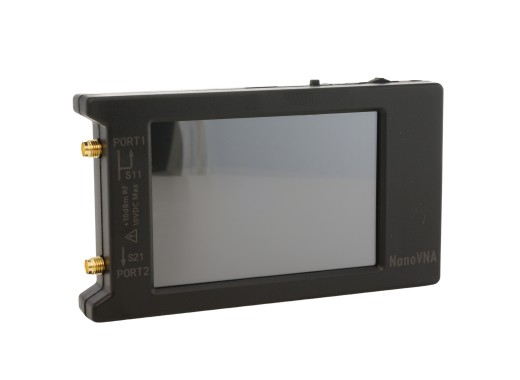

The NanoVNA-H4 is a portable 10 kHz — 1.5 GHz vector network analyser designed to measure reflection and transmission coefficients of equipment without the need for a large analyser. The analyser has a 3.95′ touch-screen that can show the measurements in 101 points. Furthermore, the NanoVNA-H has a built in 1950 mAh battery and can be connected to an android phone or PC via USB(-C). Both an WebApp for google chrome and an Android app are available controlling the analyser and displaying measurements.
There are many different versions in circulation, we sell the original NanoVNA-H4 by Hugen. The designer of this NanoVNA-H4 has made an elaborate Wiki page with all guide steps and more information. You can find this page here.
The NanoVNA-H with 2.8′ touch-screen can be found here.
Specifications Bandwidth 10 kHz — 1.5 GHz Measurement range 70dB (50kHz-300MHz)
60dB (300MHz-900MHz)
40dB (0.9GHz-1.5GHz) Port SWR Frequency tolerance Frequency stability Amount of scan points 101 Battery Built-in 1950 mAh battery Interface USB type-c Display 3.95′ Touch-screen TFT LCD (320×240) Dimensions 75 x 133 x 18 mm Caution! The NanoVNA only works with MicroSD cards 32GB. Accessories
The NanoVNA-H4 comes by default with:
- USB type-c cable
- 2x 15 cm SMA male-male TG316 RF cable
- SMA MALE calibration kit OPEN
- SMA MALE calibration kit SHORT
- SMA MALE calibration kit LOAD
- SMA FEMALE to FEMALE connector
- Type-c to Type-c cable
