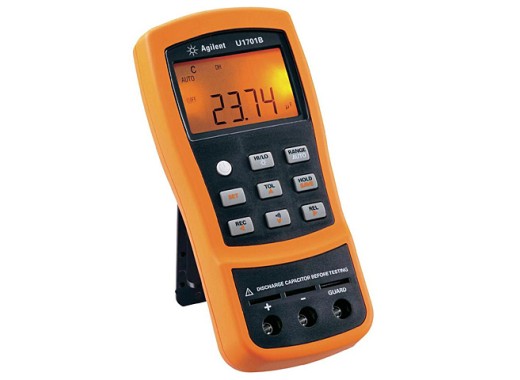

This dual display capacitance meter can measure from 0.1 pF up to 199.99 mF. The meter has a special mode to sort capacitors by means of the display and audio signals. There are 25 sets of lower and upper limits that can be set in this sorting mode. In addition to the normal measurements, this meter has a relative measurement mode and HOLD function and it is also possible for minimum, maximum and average values to be remembered.
The backlight intensity can easily be adjusted with a button, allowing this meter to be used in less bright environments.
For more information you can find the datasheet of this meter at the bottom of this page.
Specifications RangeResolutionAccuracyMeasuring frequency 1000 pF0.1 pF1.0%+105 times/s 10 nF0.001nF1.0%+55 times/s 100 nF — 100 &mu,F0.01 nF — 0.01&mu,F0.5%+35 times/s 1000&mu,F0.1&mu,F0.5%+30.86 10 mF0.001 mF1.0%+50.13 199.9 mF0.01 mF2.0%+50.006 Display 4 1/2 digits LCD, 11,000 counts Power supply 9 V (80 hours service life) Weight 320 g Dimensions 184 x 87 x 41 mm
Accessories This meter comes standard with:
- Quick start guide
- Certificate of Calibration
- Crocodile clamp wires
- 9V battery
