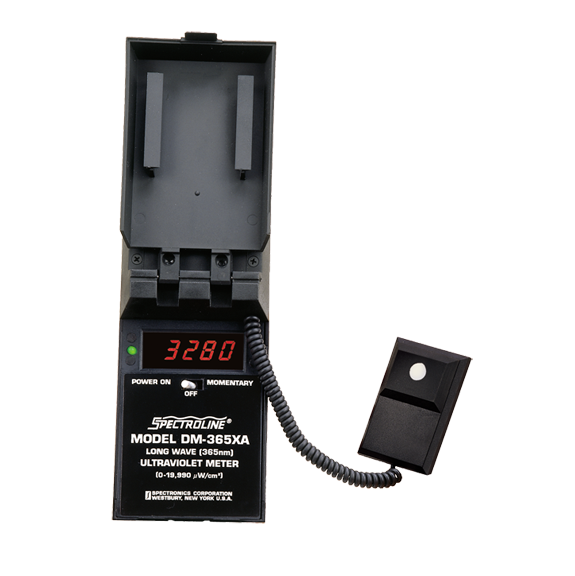

Product Information Provides increased accuracy for more repeatable results
- Measures UV-A light sources with overall accuracy of ± 5% per NIST standards
- Autozeroing, excellent linearity and cosine response, solid-state design, compact, durable, simple operation, battery-level indicator
- Sealed silicone photodiode protects against shock and humidity
- Sensor housing is constructed with series of baffles and unique self-sealing mechanism to eliminate light leakage
- Compact, lightweight and battery operated so measurements can be taken anywhere
- Complies with ASTM specifications for MPI and FPI
Specifications: Readout Unit
Resolution
10 μW/cm2 Screen 4½ digit, 7 segment, LED display
0.5 in (1.3 cm) high
Overall Accuracy
Better than + 5% with reference to NIST standards
Temperature Coefficient
+ 0.025%/°C (0 to 50°C)
Irradiance Range
0-19,900 μW/cm2
Spectral Range
320-400 nm Power Requirements Two “AA” alkaline batteries (included) Length 7¼ in (18.4 cm) Width 3.5 in (8.9 cm) Thickness 2 in (5.1 cm) Weight 1 lb (0.45 kg) Sensor Detector Length
Width
Thickness
Weight
Cord Length
3 in (7.6 cm)
2 in (5.1 cm)
0.70 in (1.8 cm)
1¼ lb (0.57 kg)
3 ft (91.4 cm)
