Product Information

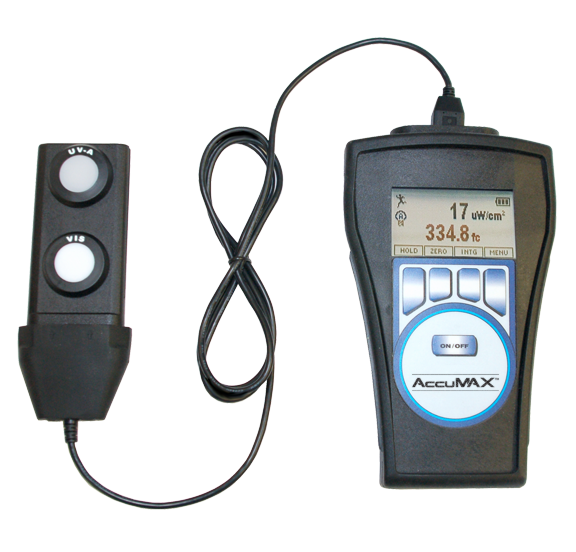

AccuMAX™ NDT Radiometer/Photometer Kit comes complete with XR-1000 Digital Readout Unit, XDS-1000 Dual UV-A/VIS Sensor, XCB-100 Water-Resistant USB Connector Cable and XCC-100 Carrying Case.
Features
- Microprocessor-controlled readout unit with dual-wavelength sensor detector
- Superior bandpass interference filter
- Choice of direct or USB connection between sensor detector and readout unit
- Excellent cosine response
- User-selectable, multilingual display settings. Choose from English, French, German and Spanish.
- Large, easy-to-read LCD screen
- Sealed sensor housing and USB connection with water-resistant adapter
Accurate
The AccuMAX™ XRP-3000 radiometer/photometer kit uses a dualwavelength UV-A/VIS sensor detector to measure both ultraviolet and visible light. Featuring automatic zeroing, integration and signal hold, the unit provides accurate readouts for UV, visible irradiance or radiance. The LCD readout features ±0.2% linearity with the sensor sending the linearity correction data to the readout unit during initial power up. To ensure consistent results, sensors are designed with superior bandpass filters while optical stacks are assembled in Class 100 clean workstations. For precise spectral coverage, high-quality interference filters are used to resist degradation.
Durable
The rugged meter housing features a removable, rubber protective boot for better grip and to help prevent accidental breakage. It also provides superior protection against moisture contamination, shock and humidity. In addition, the XRP-3000 features a liquid- and water-resistant, sealed sensor housing with a special self-sealing ring to help eliminate light leakage.
Simple Operation
The XRP-3000 meter»s microprocessor is the heart of its simplicity. Just four pressure-sensitive buttons on the readout unit»s membrane keypad offer an extensive array of advanced functions. For example, to subtract ambient light, the user need only press the ZERO button. This activates autozeroing, sets the value to 0 and displays relative readings of subsequent measurements. HOLD freezes the display thus obtained, while INTG displays the average UV intensity after integrating the UV energy over time. These functions and other user-selectable parameters are easily accessible through the software»s main and sub menus.
Multilingual Display Settings
The XRP-3000 features user-selectable, multilingual display settings.Choose from four languages: English, French, German and Spanish.
Reliable
The XRP-3000 radiometer is carefully quality-controlled to ensure that each unit has up-to-date calibration and meets stringent measurement requirements. Housed in a durable polycarbonate case, it features dependable solid-state electro-optical circuitry for long, trouble-free operation.
Portable
The XRP-3000 is compact, lightweight and battery-operated for convenient use in the factory, field or any other location where measurements need to be taken. A slide-out panel allows for easy replacement of the unit»s 9-volt batteries.
Readout Unit (XR-1000)
Resolution Screen
4-digit autoranging display 128 x 64 dot pixel chip on glass transmissive monochrome LCD—2.8 in (7.1 cm) diagonal illuminated (backlit)
Sampling Rate
7.5 Hz (single sensor)
15 Hz (dual sensor)
Read Update
2 Hz
Overall Accuracy
Better than ±5% with reference to NIST standards
Temperature Coefficient
±0.025%/°C (0 to 50°C) Dual UV-A/Visible Sensor Detector (XDS-1000)
UV-A Sensor
Visible Sensor
Measurement Range
0–100 mW/cm2
0–5,300 lux (0-500 fc)
Spectral Range
320-400 nm
460-675 nm
Luminance Sensor Detector (XS-555/L)
Sensor Detector (accessory)
Measurement Range
0–1,000,000 cd/m2
(0–285,000 fL)
Spectral Range
460-675 nm
Power Requirements Battery Operation Two non-rechargeable 9V alkaline battery cells are included as standard Dimensions Readout Unit
Length
Width
Thickness
Weight
7.75 in (19.7 cm)
4.25 in (10.8 cm)
1.25 in (3.2 cm)
0.8 lb (360 g)
Sensor Detector Length
Width
Thickness
Weight
4.75 in (12.1 cm)
2.0 in (5.1 cm)
7/8 in (2.2 cm)
0.22 lb (100 g)
USB Cable 5 ft (1.5 m) Kit Includes: Water-resistant USB
cable with adapterRubber bootCarrying case XCB-100XRB-100
XCC-100
