Product Information

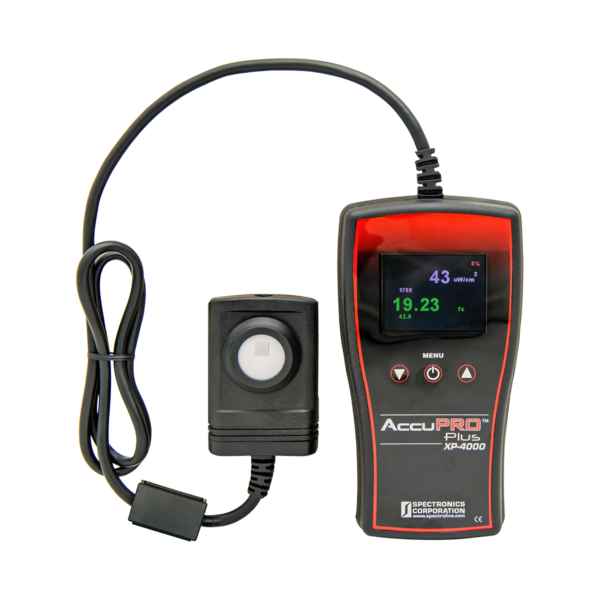

Available in two versions: The AccuPro™ (XP-2000) readout unit features a single dual-wavelength sensor detector designed to measure both ultraviolet and visible light. TheAccuPRO™ Plus (XP-4000) features a single 3-in-1 multi-purpose sensor that measures ultraviolet, visible and blue light.
Key Features
- Large, easy to read, LCD screen with 4-digit autoranging display
- Both units provide accurate readouts for UV-A irradiance as well as visible illuminance. AccuPRO™ Plus unit also measures blue light.
- Simply to use, three-button interface. Toggle between light measurement modes.
- Overall accuracy greater than ± 5% per NIST standards
- Superior band-pass interference filter provides excellent cosine response
- One-touch PEAK with reset functions
- User-defined power save and automatic shutoff
- User-selectable, multilingual display settings at any operational level. Choose from English, French, German, Chinese and Spanish.
- Rugged meter features protective rubber housing for better grip and to help prevent accidental breakage
- Sealed sensor with water-resistant housing
- Multi-wavelength sensor directly attached to meter by 3 ft (0.9 m) cord
- Complies with ASTM specifications for MPI and FPI
- Convenient on-board recharging
- Powered by four rechargeable “AAA” nickel-metal hydride batteries (included)
- Come complete with AC charger and padded carrying case
Readout Unit (XR-1000)
Resolution
4-digit autoranging display 128 x 64 dot pixel chip on glass STN transmissive LCD 2.25 in (5.7cm) diagonal illuminated (backlit)
Read Update
2 Hz Overall Accuracy Better than ± 5% with reference to NIST standards
Temperature Coefficient
± 0.025%/˚C (0 to 50˚C)
Power Requirement
Four “AAA” nickel-metal hydride batteries (rechargeable). AC charger included. Available in 120V, 230V, 240V or 100V versions. Spectral Range
UV-A Sensor
Visible Sensor
Blue Light Sensor
Measurement Range
320-400 nm
460-675 nm
410-475 nm
XP-2000 AccuPRO™ Dual Sensor (UV-A/VIS) Sensitive to UV and Visible Light Wavelength/Measurement Range UV-A (365 nm) Irradiance 0-100 mW/cm² Visible (555 nm Illuminance 0-5,382 Lux (0-500 fc) XP-4000 AccuPRO™ Plus 3-in-1 Sensor
(UV-A/VIS/Blue) Sensitive to UV, Visible and Blue Light Wavelength/Measurement Range UV-A (365 nm) Irradiance 0-100 mW/cm² Visible (555 nm) Illuminance 0-5,382 Lux (0-500 fc) Blue (450 nm) 0-100 mW/cm² Dimensions Readout Unit
Length
Width
Thickness
Weight
Sensor Detector
Length
Width
Thickness
Weight
6.0 in (15.2 cm)
3.0 in (7.6 cm)
1.0 in (2.5 cm)
8 oz (227 g)
3.0 in (7.6 cm)
2.0 in (5.1 cm)
0.5 in (1.3 cm)
5.6 oz (159 g)
