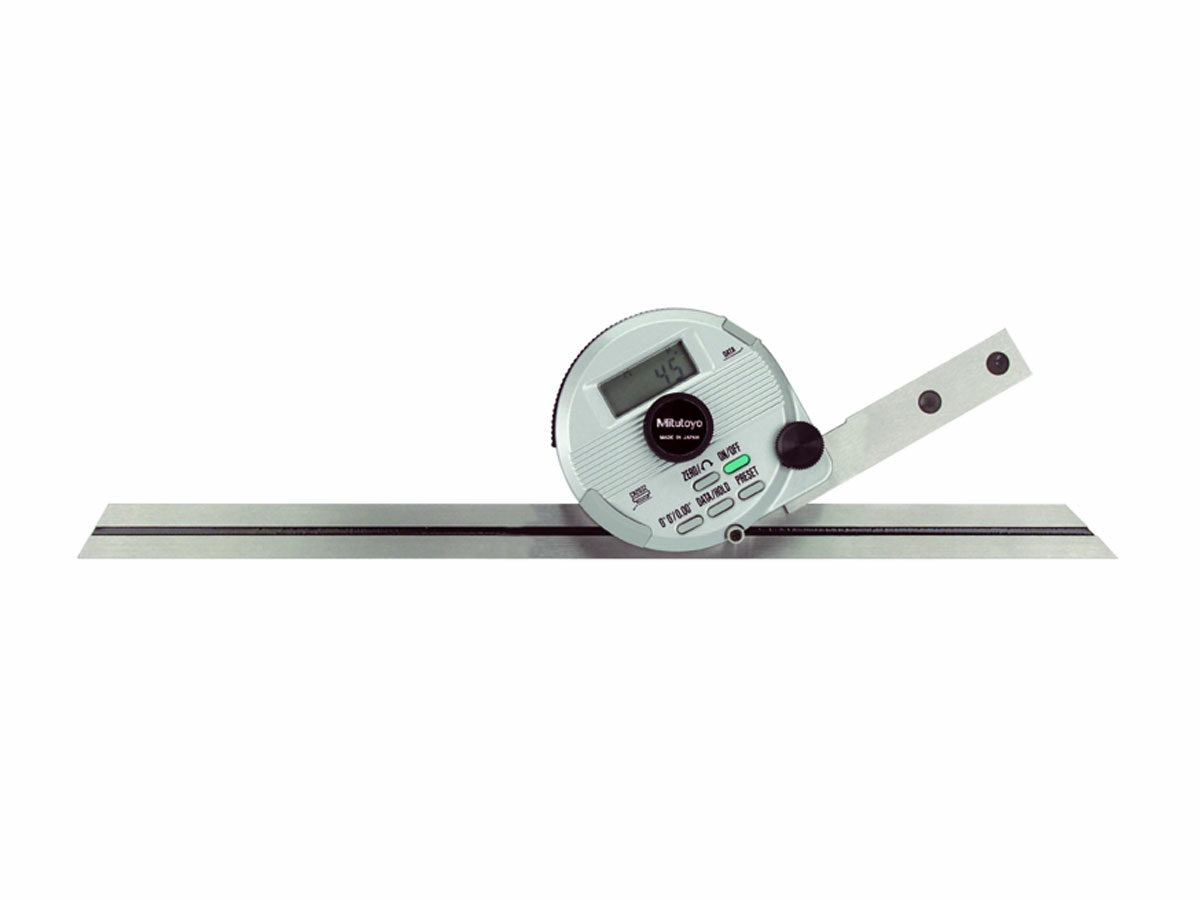

The Mitutoyo Digital Universal Protractor uses an electronic gravity sensor to generate and process highly accurate inclination values on an easy-to-read LCD screen in degrees and minutes. The protractor has a 360-degree measuring range in clockwise and counterclockwise directions to quickly measure angles for repeatable angle cuts or workpiece positioning.
- Fine-setting function provides high precision with resolution to 1 minute of arc and accuracy
- Protractor can be attached to a Height Gage
- Body is constructed of stainless steel for durability and corrosion resistance
- Functions include zero-set, direction selection, data output, data hold, preset, switchable seagesimal or decimal notation
- Alarms include low battery voltage and over speed error
- Blade is removable
| Order No.: | Product Image: | Model: | Type of Blade: | Display: | Measuring Range: | Resolution: | Accuracy: | Repeatability: | Mass: | IP Rating: | Function: | Max Response Speed: | Battery: | Battery Life: | Alarm: | Temperature Operation: | Temperature Storage: | Required Accessories: | Optional Accessories: | |
|---|
| 187-552 | — | BP-D300E | 12″ (187-103) | LCD — 5 digit, (-) sign, character height 6.5mm | -360˚ ~ +360˚ | 1″ (0.01˚) | ± 2″ (±0.03˚) | 1″ (0.01˚) | 1.45 lbs / 659g | IPIP40 | Zero, Direction select, Data output / Data hold, Preset, Switchable Seagesimal or Decimal Natation | 3 rps | Lithium battery (CR2032) 1 pc. (Part No. 05SAA217) | 2,000 hours | Battery voltage low, Over speed error (Err) | 0 to 40˚C | -10 to 60˚C | | — |
