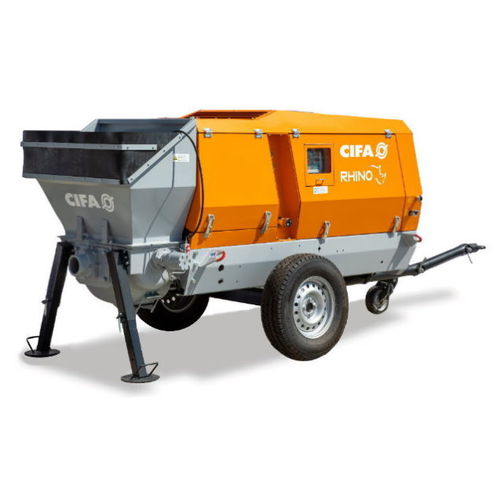

RHINO is a double piston pump with S-valve and variable output for shotcrete, micro-concrete, special concrete. RHINO is a reliable choice in tight jobsites. The trailer-built concrete spraying pump is designed for mechanized applications of wet shotcrete in combination with the MANTIS or for manual applications with a spraying nozzle.
Технические характеристики
CharacteristicsConfigurationtrailer-mountedApplicationsfor mining applicationsOther characteristicspistonOutput
Max.: 15 m³/h (529.7 ft³/h)
Min.: 2 m³/h (70.6 ft³/h)
Pumping pressure
80 bar (1,160.3 psi)
Power
22 kW (29.9 hp)
Width
336 cm (132 in)
Height
160 cm (63 in)
Weight
1,600 kg (3,527 lb)
