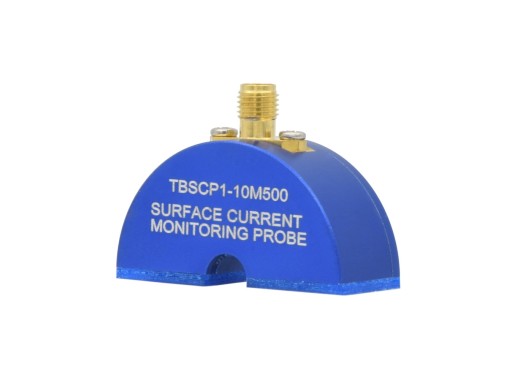

The Tekbox TBSCP1-10M500 is an affordable RF surface current monitoring probe used for EMC pre-compliance testing. The current probe has a flat response from 10 MHz to 500 MHz and is characterized over a frequency range from 9 kHz to 600 MHz. Furthermore, the applications of the TBSCP1-10M500 range from measuring RF currents on surfaces such as PCB groundplanes or traces to metal planes or wires.
Model overview Model TBSCP1-10M500 TBSCP1-5M300 Characterized frequency range 30 kHz — 600 MHz 30 KHz — 400 MHz 3 dB bandwidth 10 MHz — 500 MHz 5 MHz — 300 MHz Transfer impedance -5 dBΩ -7 dBΩ Price 541.32 €541.32 Excl. VAT 487.6 €487.60 Excl. VAT Specifications Type connector SMA Female Maximum primary current (DC — 400 Hz) 150 A Maximum primary current (RF) 12 A Maximum core temperature 125 ℃ Footprint 40 mm x 15 mm Weight 25 g Height 30 mm
