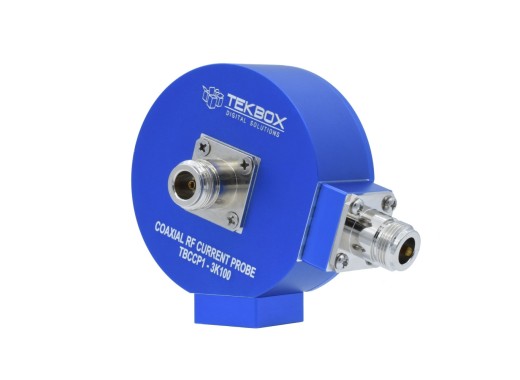

The TBCCP1-3K100 from the Tekbox TBCCP1 series is a snap-on RF current probe designed for EMC pre-compliance testing. This probe has a 3 dB bandwidth from 3 kHz to 100 MHz and a very flat response. The TBCCP1-3K100 probe can be used for measurement of RF currents in coaxial cables or as a transducer for passive loop antennas.
Model overview Model TBCCP1-2K70 TBCCP1-3K100 TBCCP1-400K600 Characterized frequency range 10 Hz — 100 MHz 10 Hz — 100 MHz 10 Hz — 600 MHz Transfer impedance 0 dBΩ 5 dBΩ 22 dBΩ Price 1049.59 €1,049.59 Excl. VAT 987.6 €987.60 Excl. VAT 987.6 €987.60 Excl. VAT Specifications 3 dB bandwidth 3 kHz to 100 MHz Type connector N Female Maximum primary current (RF) 12 A Maximum core temperature 125 ℃ Weight 400 g Dimensions 76 mm x 102 mm x 69 mm
