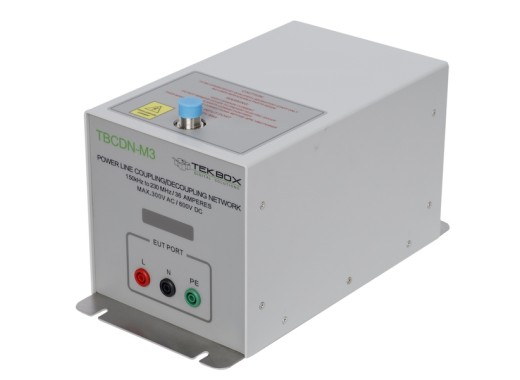

The Tekbox TBCDN-M3 is a Coupling Decoupling Network (CDN) used for conducting immunity testing according to IEC 61000-4-6. Furthermore, the TBCDN-M3 is compliant with IEC 61000-4-6 Annex D2. It is designed to inject common mode disturbance signals in the frequency range from 150 kHz to 230 MHz into unscreened AC and DC power supply lines.
Model overview Model TBCDN-M1 TBCDN-M2 TBCDN-M3 TBCDN-M4 Maximum current 15 A 36 A 36 A 36 A Ports L L, N L, N, PE L1, L2, L3, PE Price 904.96 €904.96 Excl. VAT 1053.72 €1,053.72 Excl. VAT 1169.42 €1,169.42 Excl. VAT 1262.81 €1,262.81 Excl. VAT Specifications Maximum supply voltage300 V AC, 600 V DC Frequency range150 kHz — 230 MHz Maximum RF input power6.5 W CW Maximum RF input voltage32 V RF input connectorN-female EUT / AE connectors4 mm banana safety jacks
4 mm slots in base plate for GND connection Dimensions300 x 150 x 150 mm Weight2.5 kg Available Accessories
The following accessories can be ordered for the TBCDN-M3:
- TekBox TBCDN-M3-AP Adapter panel with shorting bar for M3 coupling decoupling network (CDN)
- TekBox TBCDNAS-M3 CDN M3 accessory set
- Tekbox TBCDN-50-150 50 ohm to 150 ohm adapter
