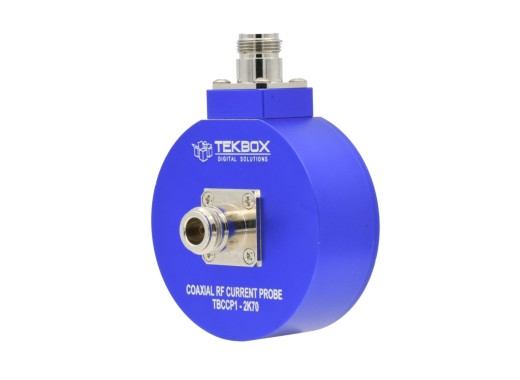

The TBCCP1-2K70 from the Tekbox TBCCP1 series is a snap-on RF current probe designed for EMC pre-compliance testing. This probe has a 3 dB bandwidth from 2 kHz to 70 MHz. The TBCCP1-2K70 probe can be used for measurement of RF currents in coaxial cables or as a transducer for passive loop antennas. With a trans-impedance of 0 dBΩ when loaded with 50Ω, it is compliant with the specifications for large loop antennas in CISPR 15 and CISPR 16-1-4.
Model overview Model TBCCP1-2K70 TBCCP1-3K100 TBCCP1-400K600 Characterized frequency range 10 Hz — 100 MHz 10 Hz — 100 MHz 10 Hz — 600 MHz Transfer impedance 0 dBΩ 5 dBΩ 22 dBΩ Price 1049.59 €1,049.59 Excl. VAT 987.6 €987.60 Excl. VAT 987.6 €987.60 Excl. VAT Specifications 3 dB bandwidth 2 kHz to 70 MHz Type connector N Female Maximum primary current (RF) 12 A Maximum core temperature 125 ℃ Weight 450 g Dimensions 76 mm x 102 mm x 69 mm
