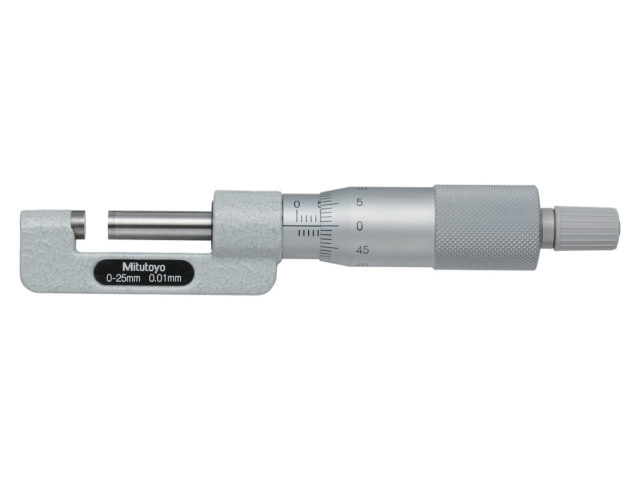

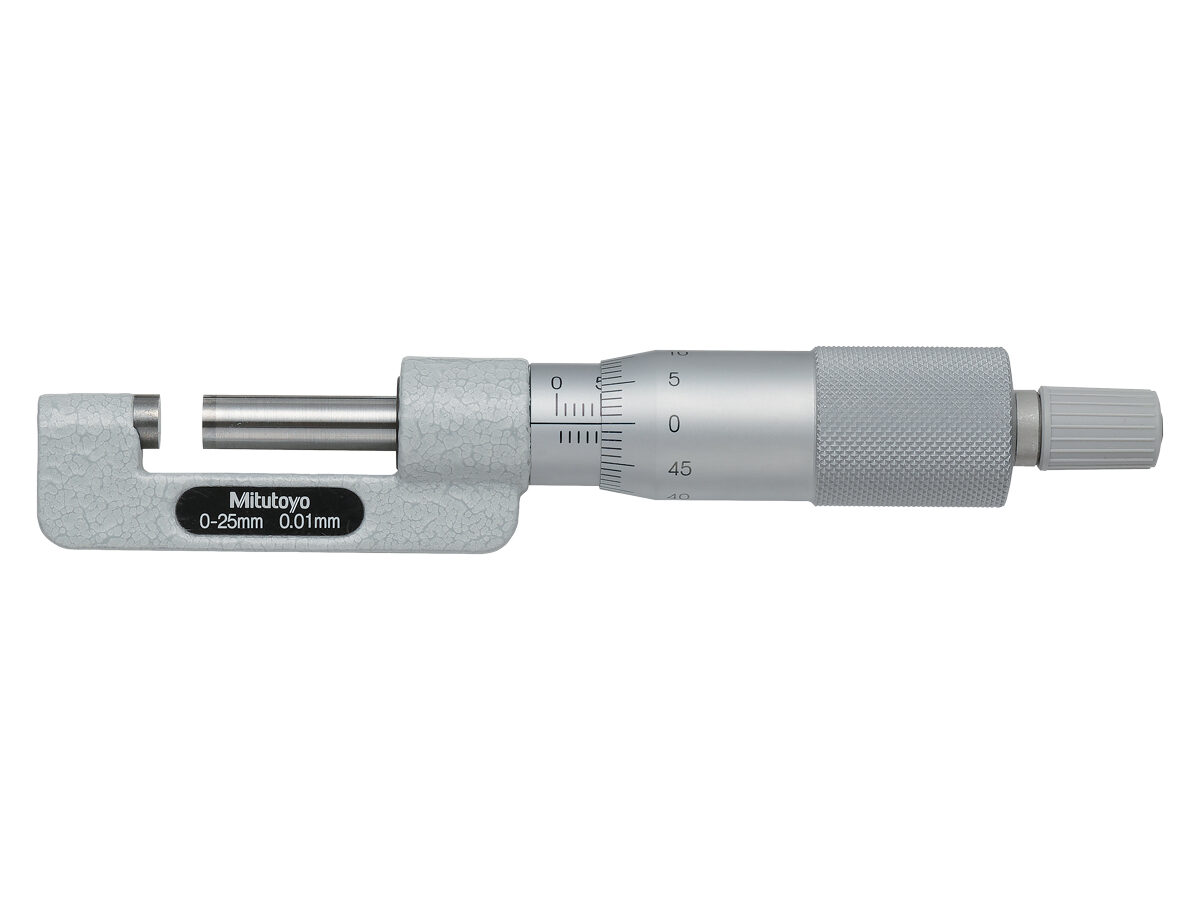

The Mitutoyo hub micrometer features high-grade hardened steel on its frame, spindle and anvil to deliver precise, repeatable thickness and shoulder measurements. The micrometer»s ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. An inch Vernier scale provides outside diameter measurements.
- Available in Metric and Inch models
- Measuring surfaces on the anvil and spindle are constructed of carbide to reduce wear
- Ratchet mechanism provides an audible click to ensure measurement is performed at a constant force
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame has a baked enamel finish for durability and longer lifespan
- Includes a standard bar except for 0-25mm / 0-1” model
- Supplied in fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Mass: | Graduation: | Flatness: | Parallelism: | |
|---|
| 147-301 | — | Metric | 0-25mm | ±2µm | 135g | 0.01mm | 0.6µm | 3µm or less |
| 147-302 | — | Metric | 25-50mm | ±2µm | 150g | 0.01mm | 0.6µm | 3µm or less |
| 147-303 | — | Metric | 50-75mm | ±2µm | 170g | 0.01mm | 0.6µm | 3µm or less |
| 147-304 | — | Metric | 75-100mm | ±3µm | 185g | 0.01mm | 0.6µm | 3µm or less |
| 147-351 |  | Inch | 0-1″ | ±0.00010″ | 135g | 0.001″ | — | 0.00012″ or less |
| 147-352 | ![]() | Inch | 1-2″ | ±0.00010″ | 150g | 0.001″ | — | 0.00012″ or less |
| 147-353 | — | Inch | 2-3″ | ±0.00010″ | 170g | 0.001″ | — | 0.00012″ or less |
| 147-354 | — | Inch | 3-4″ | ±0.00015″ | 185g | 0.001″ | — | 0.00012″ or less |
| 147-301 |
| 147-302 |
| 147-303 |
| 147-304 |
| 147-351 |
| 147-352 |
| 147-353 |
| 147-354 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Ratchet/Thimble: | Ratchet Stop |
|---|
| Measuring Faces: | Carbide tipped |
|---|
