Микрометрические головки — обычный тип

Микрометрические головки — обычный тип — малый

Стандартная микрометрическая головка меньшего размера Mitutoyo короче по длине и диапазону, а также имеет меньший диаметр для более удобного размещения в машинах и приспособлениях.

The Mitutoyo standard micrometer head comes in a smaller size to fit tighter spaces while providing accurate placement and measurements. The spindle is constructed of hardened tool steel, and the measuring face is precision lapped for better accuracy.

Available in Metric and Inch models
Smaller size mic head has a 13mm thimble diameter
Spindle range is 13mm / .5”
Mounting stem diameter is 9.5mm / .375”
Spindle diameter is 5mm / .197”
Mic head total lengths (at stroke end) are 71.5mm / 2.81” and 80.1mm / 3.15”
Reverse reading is available on some models
Spindle faces have lapped surfaces and are constructed of ultra-hard SKS3 steel and are available in spherical or flat types
Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
Spindle screw threads are precision machined for incredibly precise movements

Order No.:	Product Image:	Units:	Range:	Accuracy:	Graduation:	Measuring Faces:	Stem Diameter:	Stem:	Spindle pitch:	Spindle Lock:	Remarks:

Order No.:

148-832	—	Inch	0-0.5″	±0.0001″	0.001″	Flat	0.375″	w/clamp nut	0.025″	No	Reverse reading

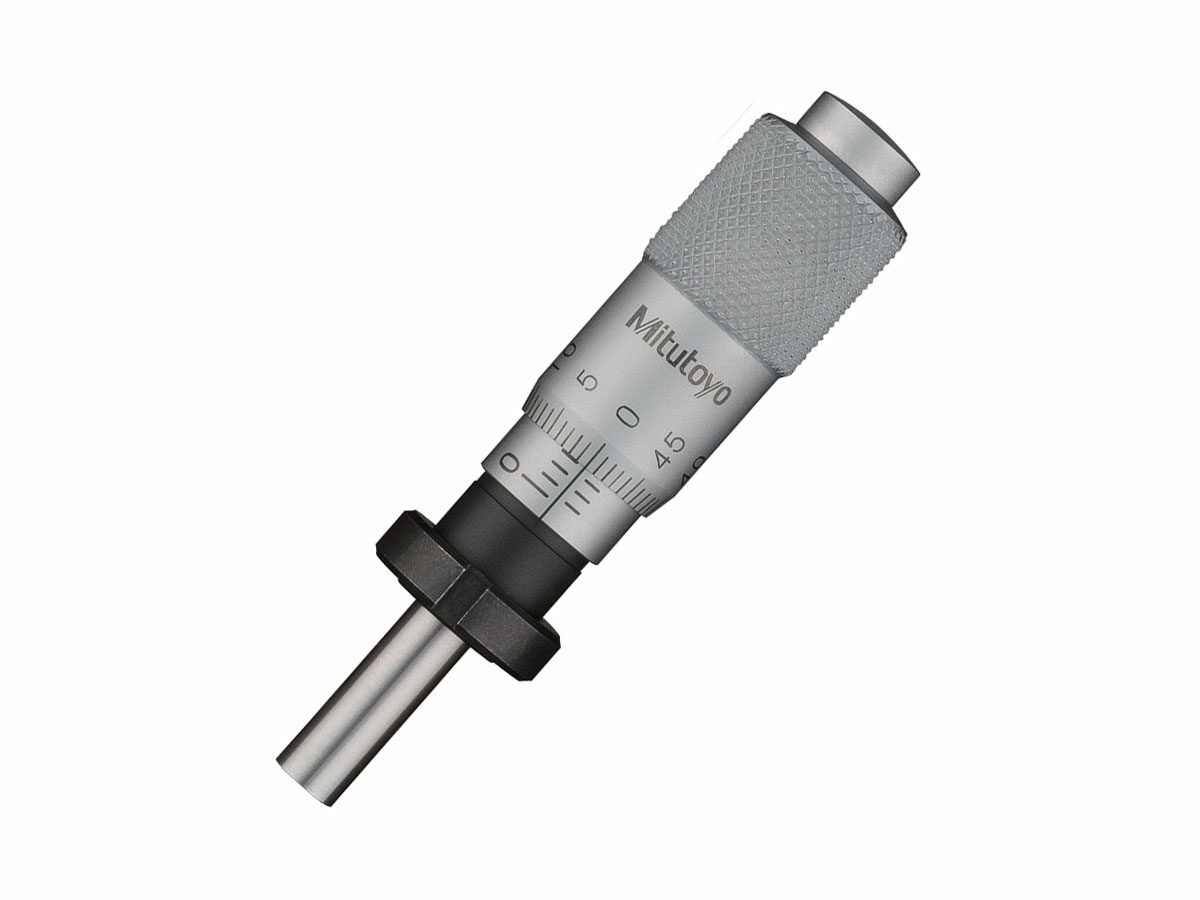

148-103	—	Metric	0-13mm	±2µm	0.01mm	Flat	9.5mm	w/clamp nut	0.5mm	No	—
148-104		Metric	0-13mm	±2µm	0.01mm	Flat	9.5mm	Plain	0.5mm	No	—
148-111	—	Inch	0-0.5″	±0.0001″	0.001″	Flat	0.375″	w/clamp nut	0.025″	No	—
148-112	—	Inch	0-0.5″	±0.0001″	0.001″	Flat	0.375″	Plain	0.025″	No	—
148-120		Metric	0-13mm	±2µm	0.01mm	Flat	9.5mm	w/clamp nut	0.5mm	Yes	—
148-121	—	Metric	0-13mm	±2µm	0.01mm	Flat	9.5mm	Plain	0.5mm	Yes	—
148-122	—	Inch	0-0.5″	±0.0001″	0.001″	Flat	0.375″	w/clamp nut	0.025″	Yes	—
148-123	—	Inch	0-0.5″	±0.0001″	0.001″	Flat	0.375″	Plain	0.025″	Yes	—
148-801		Metric	0-13mm	±2µm	0.01mm	Spherical (SR4)	9.5mm	Plain	0.5mm	No	—
148-802	—	Metric	0-13mm	±2µm	0.01mm	Spherical (SR4)	9.5mm	w/clamp nut	0.5mm	No	—
148-803	—	Metric	0-13mm	±2µm	0.01mm	Spherical (SR4)	9.5mm	Plain	0.5mm	Yes	—
148-804	—	Metric	0-13mm	±2µm	0.01mm	Spherical (SR4)	9.5mm	w/clamp nut	0.5mm	Yes	—
148-811	—	Inch	0-0.5″	±0.0001″	0.001″	Spherical (SR4)	0.375″	Plain	0.025″	No	—
148-812	—	Inch	0-0.5″	±0.0001″	0.001″	Spherical (SR4)	0.375″	w/clamp nut	0.025″	No	—
148-813	—	Inch	0-0.5″	±0.0001″	0.001″	Spherical (SR4)	0.375″	Plain	0.025″	Yes	—
148-814	—	Inch	0-0.5″	±0.0001″	0.001″	Spherical (SR4)	0.375″	w/clamp nut	0.025″	Yes	—
148-821		Metric	0-13mm	±2µm	0.01mm	Flat	9.5mm	Plain	0.5mm	No	Reverse reading
148-822	—	Metric	0-13mm	±2µm	0.01mm	Flat	9.5mm	w/clamp nut	0.5mm	No	Reverse reading
148-823	—	Metric	0-13mm	±2µm	0.01mm	Flat	9.5mm	Plain	0.5mm	Yes	Reverse reading
148-824	—	Metric	0-13mm	±2µm	0.01mm	Flat	9.5mm	w/clamp nut	0.5mm	Yes	Reverse reading
148-831	—	Inch	0-0.5″	±0.0001″	0.001″	Flat	0.375″	Plain	0.025″	No	Reverse reading
148-832	—	Inch	0.5-0″	—	0.001″	—	—	w/clamp nut	0.025″	—	Reverse reading
148-833	—	Inch	0-0.5″	±0.0001″	0.001″	Flat	0.375″	Plain	0.025″	Yes	Reverse reading
148-834	—	Inch	0-0.5″	±0.0001″	0.001″	Flat	0.375″	w/clamp nut	0.025″	Yes	Reverse reading

148-832
148-103
148-104
148-111
148-112
148-120
148-121
148-122
148-123
148-801
148-802
148-803
148-804
148-811
148-812
148-813
148-814
148-821
148-822
148-823
148-824
148-831
148-832
148-833
148-834

Технические характеристики

Technology:	Mechanical
Scale Surface:	Hard chrome plating
