Трубчатый микрометр-цилиндрическая наковальня

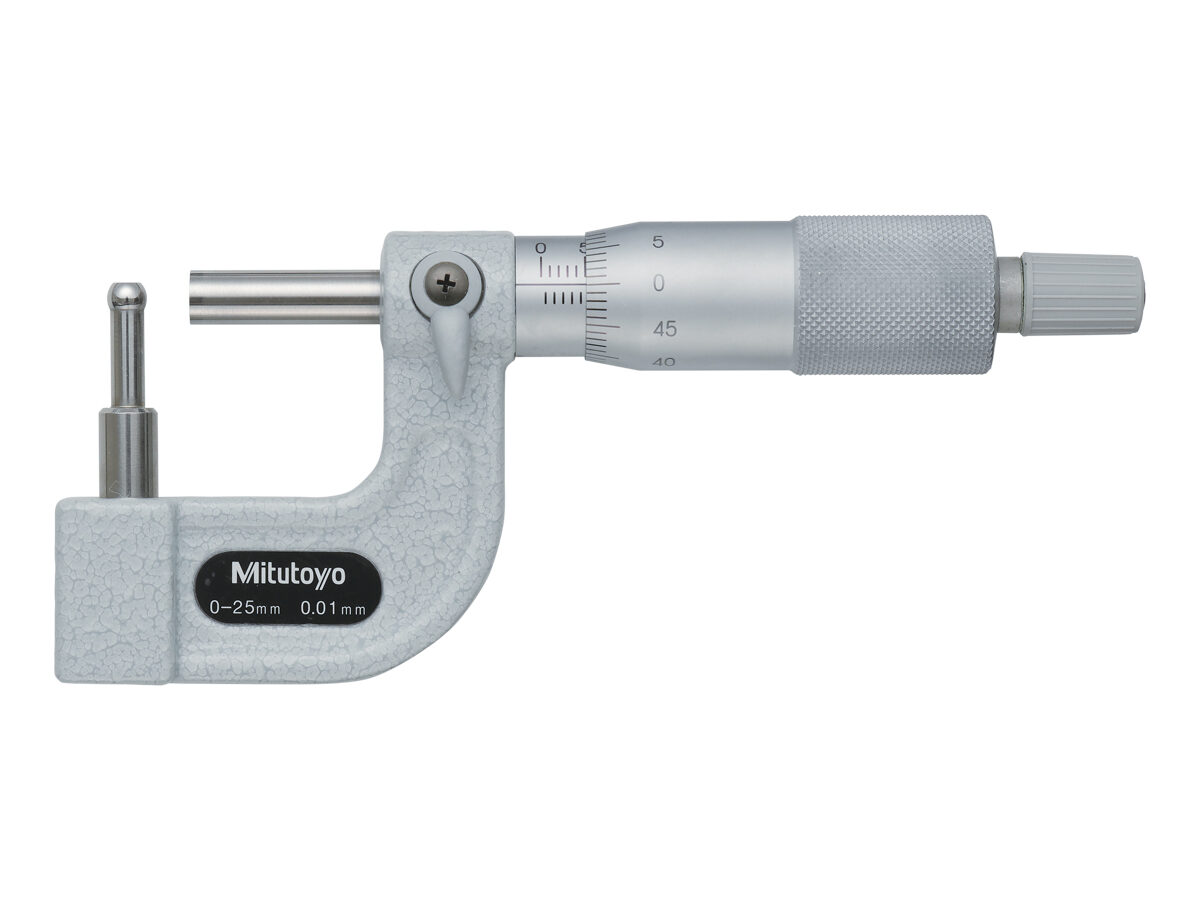

The Mitutoyo tube micrometer is available with either flat or spherical measuring face options to measure the wall thickness of various tubes. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.

Available with pin, spherical and cylindrical anvils
Available in Metric and Inch models
Designed to measure the wall thickness of various tubing
Measuring surfaces are constructed of carbide to reduce wear
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force
Knurled friction thimbles provide quick adjustments even when wearing gloves
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a baked enamel finish for durability and longer lifespan
Includes a standard bar except for 0-25 mm and 0-1” model
Supplied in fitted plastic case

Order No.:	Product Image:	Units:	Range:	Accuracy:	Mass:	Graduation:	Flatness:	Remarks:

Order No.:

115-302	—	Metric	0-25mm	±3µm	180g	0.01mm	0.3µm	Type A
115-303	—	Metric	25-50mm	±3µm	240g	0.01mm	0.3µm	Type A
115-305	—	Inch	0-1″	±.00015″	180g	0.0010″	—	Type A
115-308	—	Metric	0-25mm	±3µm	180g	0.01mm	0.3µm	Type B
115-309	—	Metric	25-50mm	±3µm	240g	0.01mm	0.3µm	Type B
115-313		Inch	0-1″	±.00015″	180g	0.0001″	—	Type C
115-314		Inch	0-1″	±.00015″	180g	0.0001″	—	Type D
115-315	—	Metric	0-25mm	±3µm	180g	0.01mm	0.3µm	Type C
115-316	—	Metric	0-25mm	±3µm	180g	0.01mm	0.3µm	Type D

115-302
115-303
115-305
115-308
115-309
115-313
115-314
115-315
115-316

Технические характеристики

Technology:	Mechanical
SPC Output:	No
Ratchet/Thimble:	Rachet Stop
