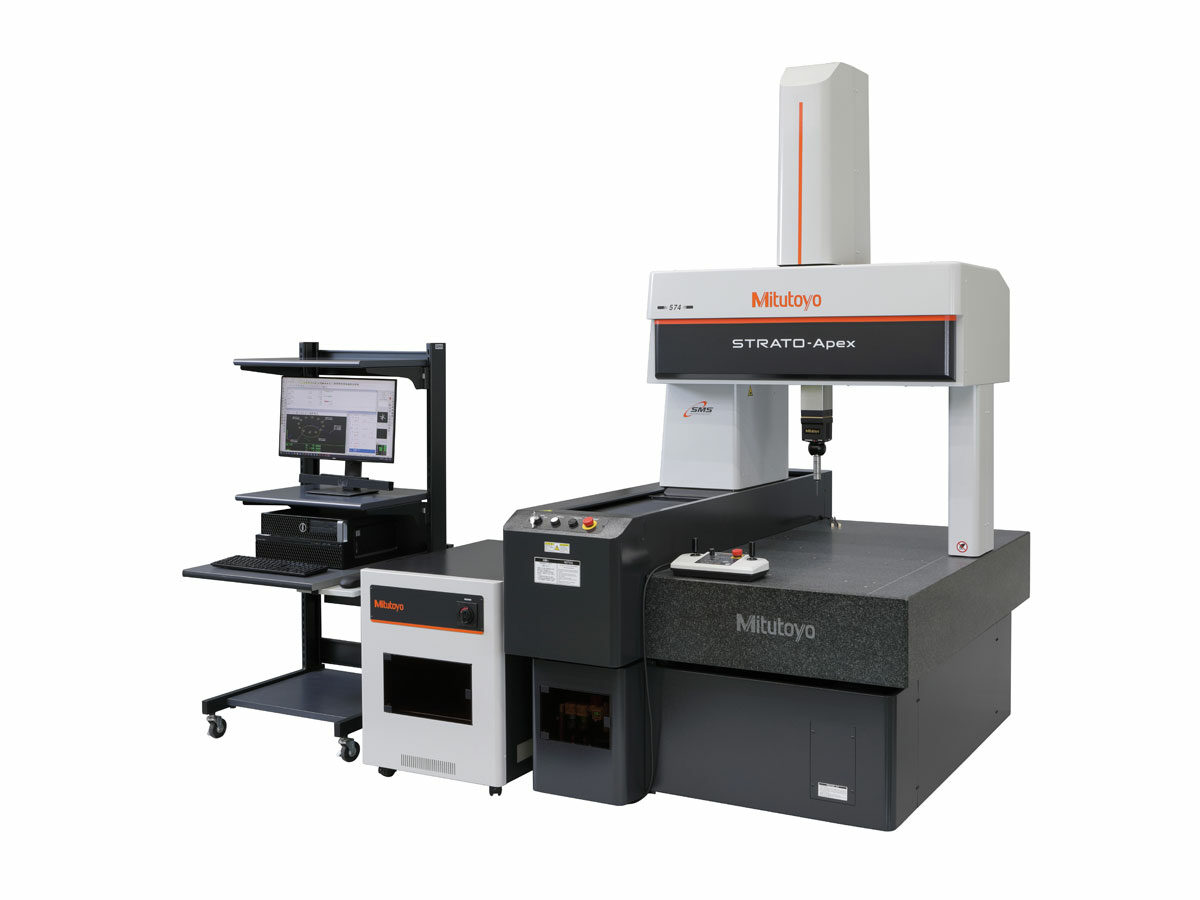

The STRATO-Apex series of CNC CMMs is available in several different model sizes, each offering high-drive speed and acceleration for top scanning performance with high-accuracy measurements. An innovative built-in, high-performance controller uses a digital servo system to process all control loops for position, speed and current as digital signals, reducing drift and deterioration. Improved structural rigidity and new compensation technology helps the STRATO-Apex series CMMs achieve high-performance and accuracy with minimal probing errors.
- Temperature compensation guarantees accuracy within the range of 18 to 22°C (STRATO APEX 574 19 to 21°C), without a temp-controlled room
- Vibration-damping unit prevents floor vibrations from reaching the main unit, detects load changes caused by movement of individual axes
- Ultra-high precision glass scales combined with high-performance reflective linear encoder creates ultra-high accuracy measurement on each axis
| Order No.: | Product Image: | CMM Model: | Range X-Axis: | Range Y-Axis: | Range Z-Axis: | Worktable Size: | Workpiece Max Height: | Workpiece Max Load: | Machine Mass: | Machine Dimensions: | Air Supply: | Air Consumption: | Air Source: |
|---|
| Order No.: |
|---|
| 355-702 |  | STRATO APEX 574 | 19.68″ (500mm) | 27.55″ (700mm) | 15.74″ (400mm) | 26.61 x 55.90″ (676 x 1420mm) | 22.04″ (560mm) | 396lbs (180kg) | 3,373lbs (1530kg) | 49.99×66.92×94.88″ (1270x1700x2410mm) | 58.0PSI (0.4MPa) | 2.11CFM (60L/min) | 4.23CFM (120L/min) |
| 355-705 | — | STRATO APEX 776 | 27.55″ (700mm) | 27.55″ (700mm) | 23.62″ (600mm) | 33.93 x 55.90″ (862 x 1420mm) | 30.31″ (770mm) | 1,102lbs (500kg) | 4,177lbs (1895kg) | 57.48×75.19×111.41″ (1460x1910x2830mm) | 58.0PSI (0.4MPa) | 2.11CFM (60L/min) | 4.23CFM (120L/min) |
| 355-707 |  | STRATO APEX 7106 | 27.55″ (700mm) | 78.74″ (2000mm) | 23.62″ (600mm) | 33.93 x 67.71″ (862 x 1720mm) | 30.31″ (770mm) | 1,763lbs (800kg) | 4,806lbs (2180kg) | 57.48×87.00×111.41″ (1460x2210x2830mm) | 58.0PSI (0.4MPa) | 2.11CFM (60L/min) | 4.23CFM (120L/min) |
| 355-712 |  | STRATO APEX 9166 | 35.43″ (900mm) | 62.99″ (1600mm) | 23.62″ (600mm) | 41.81 x 91.33″ (1062 x 2320mm) | 30.31″ (770mm) | 2,645lbs (1200kg) | 6,801lbs (3085kg) | 65.35×110.62×111.41″ (1660x2810x2830mm) | 58.0PSI (0.4MPa) | 2.11CFM (60L/min) | 4.23CFM (120L/min) |
| 355-714 | — | STRATO APEX 162012 | 62.99″ (1600mm) | 78.74″ (2000mm) | 47.24″ (1200mm) | 72.8 x 127.9″ (1850 x 3280mm) | 53.14″ (1350mm) | 7,716lbs (3500kg) | 24,581lbs (11150kg) | 110.43×147.24×170.86″ (2805x3740x4340mm) | 58.0PSI (0.4MPa) | 3.53CFM (100L/min) | 8.82CFM (250L/min) |
| 355-716 | — | STRATO APEX 163012 | 62.99″ (1600mm) | 118.11″ (3000mm) | 47.24″ (1200mm) | 72.8 x 167.3″ (1850 x 4280mm) | 53.14″ (1350mm) | 8,818lbs (4000kg) | 33,730lbs (15300kg) | 110.43×186.61×172.83″ (2805x4740x4390mm) | 58.0PSI (0.4MPa) | 3.53CFM (100L/min) | 8.82CFM (250L/min) |
| 355-718 | — | STRATO APEX 162016 | 62.99″ (1600mm) | 78.74″ (2000mm) | 62.99″ (1600mm) | 72.8 x 127.9″ (1850 x 3280mm) | 68.89″ (1750mm) | 7,716lbs (3500kg) | 24,691lbs (11200kg) | 110.43×147.24×202.36″ (2805x3740x5140mm) | 58.0PSI (0.4MPa) | 3.53CFM (100L/min) | 8.82CFM (250L/min) |
| 355-721 | — | STRATO APEX 163016 | 62.99″ (1600mm) | 118.11″ (3000mm) | 62.99″ (1600mm) | 72.8 x 167.3″ (1850 x 4280mm) | 68.89″ (1750mm) | 8,818lbs (4000kg) | 33,840lbs (15350kg) | 110.43×186.61×204.33″ (2805x4740x51+J590mm) | 58.0PSI (0.4MPa) | 3.53CFM (100L/min) | 8.82CFM (250L/min) |
| 355-702 |
| 355-705 |
| 355-707 |
| 355-712 |
| 355-714 |
| 355-716 |
| 355-718 |
| 355-721 |
Технические характеристики
| Technology: | Coordinate Measuring Machine — CNC |
|---|---|
| Units: | Inch, Metric |
| Resolution: | 0.00000078′ (0.00002mm) |
| Guide Method: | Air bearing on each axis |
| Worktable Material: | Granite |
| Worktable Tapped Inserts: | M8 x 1.25mm |
| Environment: | 64.4-71.6°F 18-22°C |
| Vibration Stand: | Standard |
| Probe System: | PH10MQ |
| Touch Trigger Probe: | TP200 |

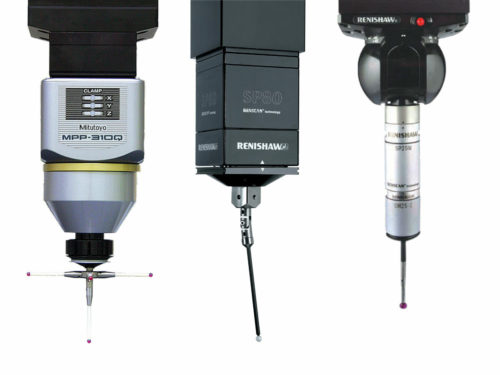

| Scanning Probe: | MPP, SP25, SP80 |
| Laser Probe: | SurfaceMeasure |
| Optical Probe: | QVP |
| Surface Roughness Probe: | SurfTest |
