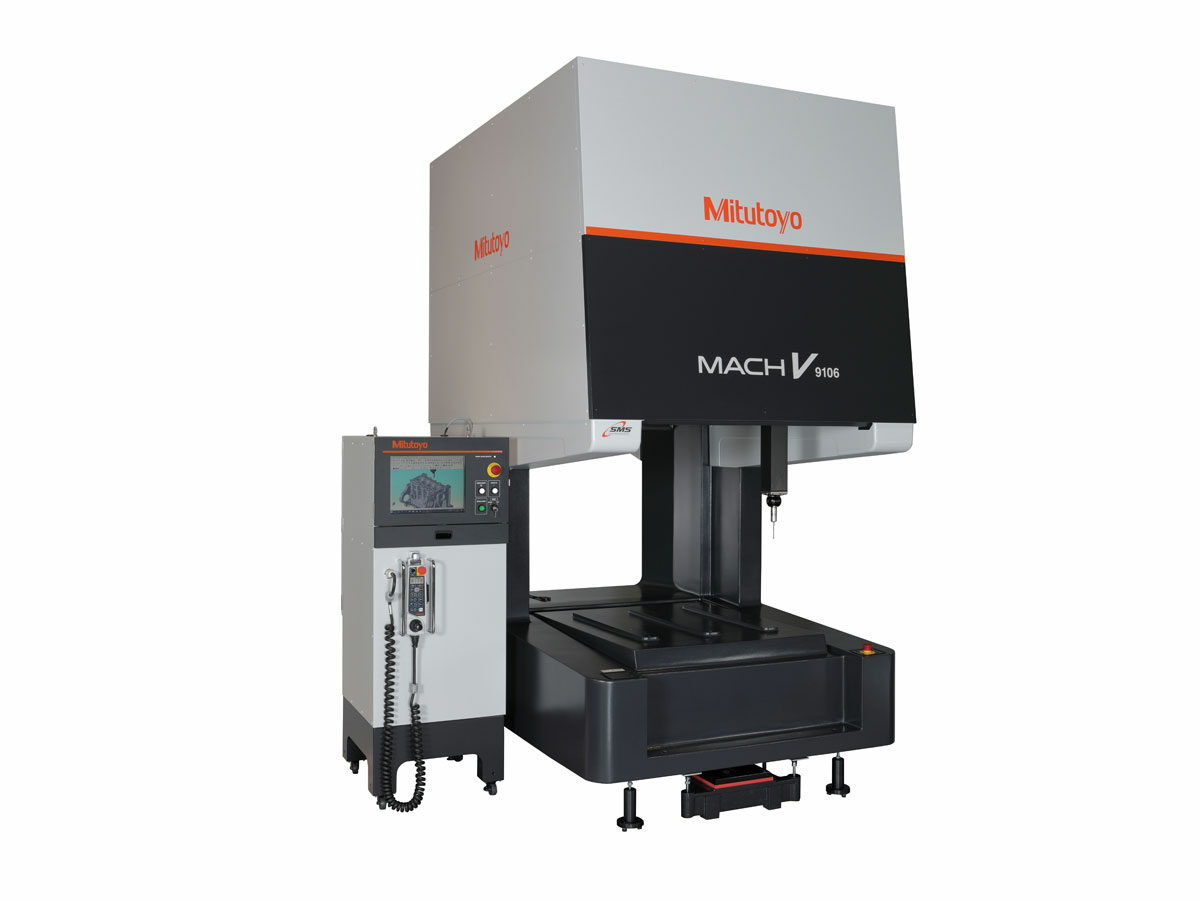

The Mitutoyo MACH-V Coordinate Measuring Machine provides great measurement flexibility in a space-saving design. Its barycentric drive system minimizes slide rotation to provide higher speed and throughput with minimum accuracy deterioration compared with other commonly used CMMs. The MACH-V system can be incorporated into or near the manufacturing line and provide pre/post machining feedback to your machine tools for machining adjustments to maximize machining operations.
- The world»s fastest vertical-axis in-line CNC CMM with 8,840mm/s² acceleration
- Open access to the measuring area from the front, back, left or right increases flexibility in loading workpieces
- Improved structural design, air-free operations and improved dust resistance reduces maintenance
- Temperature compensation guarantees accuracy within the range of 41 to 95°F (5 to 35°C) without a temp-controlled room
| Order No.: | Model: | Range X-Axis: | Range Y-Axis: | Range Z-Axis: | Worktable Size: | Workpiece Max Height: | Workpiece Max Load: | Machine Mass: | Machine Dimensions: | Air Supply: | Air Consumption: | Air Source: |
|---|
| Order No.: |
|---|
| 360-224-10 | MACH-V 9106 | 35.43″ (900mm) | 39.37″ (1000mm) | 23.624″ (600mm) | 41.96 x 35.62″ (1066 x 905mm) | 31.50″ (800mm) | 300lbs (150kg) | 9105lbs (4130kg) | 58.14×115.82×114.17″ (1477x2942x2900mm) | Air not required | Air not required | Air not required |
| 360-224-10 |
Технические характеристики
| Technology: | Coordinate Measuring Machine — CNC |
|---|---|
| Units: | Inch, Metric |
| Resolution: | 0.000004′ (0.0001mm) |
| Guide Method: | Linear guide each axis |
| Vibration Stand: | Not Applicable |
| Probe System: | PH10MQ |
| Touch Trigger Probe: | TP7 |
| Scanning Probe: | SP25 |
| Laser Probe: | SurfaceMeasure |

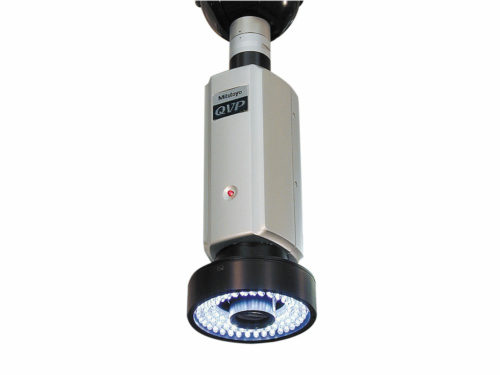

| Optical Probe: | QVP |

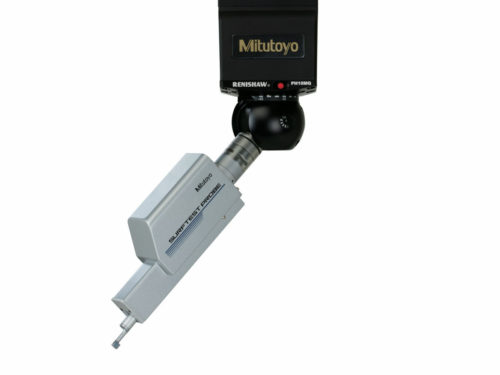

| Surface Roughness Probe: | SurfTest |
