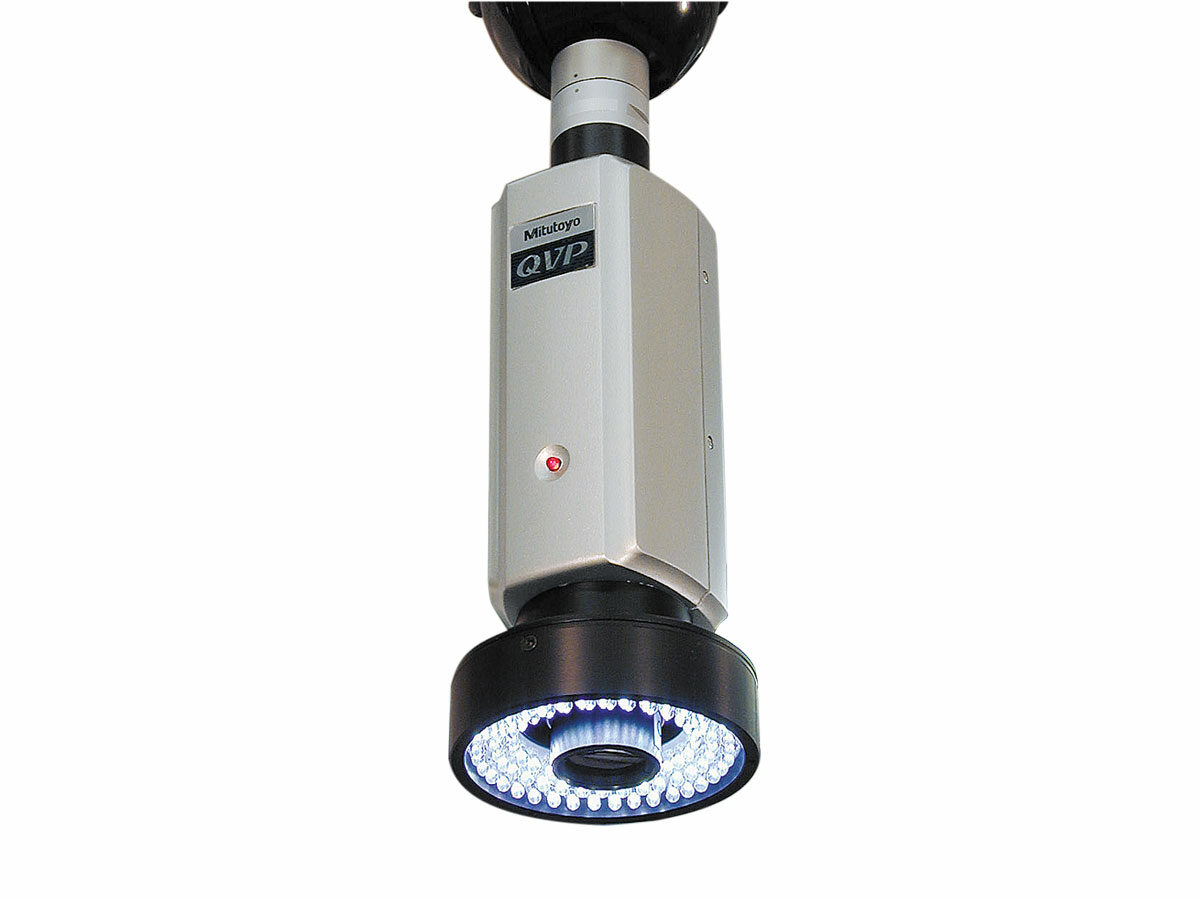

The Quick Vision Probe for Coordinate Measuring Machines is a vision probe developed on Mitutoyo state-of-the-art vision measurement technology to enable full automation of image measurement with a CNC CMM. The QVP probe performs form measurement by image processing micro geometry that cannot be measured by a contact probe. This optical, non-contact measurement method is ideal for measuring flexible bodies that are easily deformed by slight measuring forces of conventional touch probes.
- The QVP probe automatically detects workpiece edges using dedicated VISIONPAK software
- Various calculations process, ie: dimensions and geometrical deviations are performed by general purpose GEOPAK software
- Standard adjustable co-axial light in the lens system and white light LED ring illumination eliminates the need for auxiliary illumination
- The QVO can mount on an automatic probe changer for fully automated measurement
| Order No.: | Optical Probe: | Probe Head: | Probe Mount: | CMM Type: | Software Required: | Sensing Technology: | Optical Tube Magnification: | Co-axial Illumination: | Ring Illumination: | Objective Magnification: | Observation Range: | Working Distance: | Depth of Focus: |
|---|
| Order No.: |
|---|
| 359-051-6A | QVP | PH10M, PH10MQ, PH6M | Autojoint Connector | CNC | MCOSMOS+Visionpak | 1/2″ CCD (B/W) | 0.5X | White Light LED | White Light LED | Standard: 3X Optional: 1X, 5X, 10X | Standard: 3.2×4.3mm Optional: 9.6×12.8, 1.9×2.6, 1×1.3mm | Standard: 72.3mm Optional: 59, 59.5, 44 mm | Standard: 56mm Optional:306, 23, 8 mm |
| 359-051-6A |
