The Mitutoyo micrometer standards are built with the same precision as our micrometers to reliably set the zero point on outside micrometers. The standard»s measuring faces are exceptionally flat and lapped for precise, repeatable measurements over time. The handle is heat insulated to prevent expansion due to body temperature.
- Available in Metric lengths from 25mm to 1000mm
- Available in Inch lengths from 1” to 79”
- Supplied in fitted carton for standards up to 500mm/20” in length
- Supplied in wooden case for standards over 525mm/21” in length
| Order No.: | Product Image: | Units: | Length: | Diameter: | Accuracy: | Size: | Remarks: | Supplied Case: |
|---|
| Order No.: |
|---|
| 167-101 | — | Metric | 25mm | 6.35mm | ±1.5µm | — | — | — |
| 167-102 | — | Metric | 50mm | 6.35mm | ±2.0µm | — | — | — |
| 167-103 | — | Metric | 75mm | 6.35mm | ±2.5µm | — | — | — |
| 167-104 | — | Metric | 100mm | 7.9mm | ±3.0µm | — | — | — |
| 167-105 | — | Metric | 125mm | 7.9mm | ±3.5µm | — | — | — |
| 167-106 | — | Metric | 150mm | 7.9mm | ±4.0µm | — | — | — |
| 167-107 | — | Metric | 175mm | 7.9mm | ±4.5µm | — | — | — |

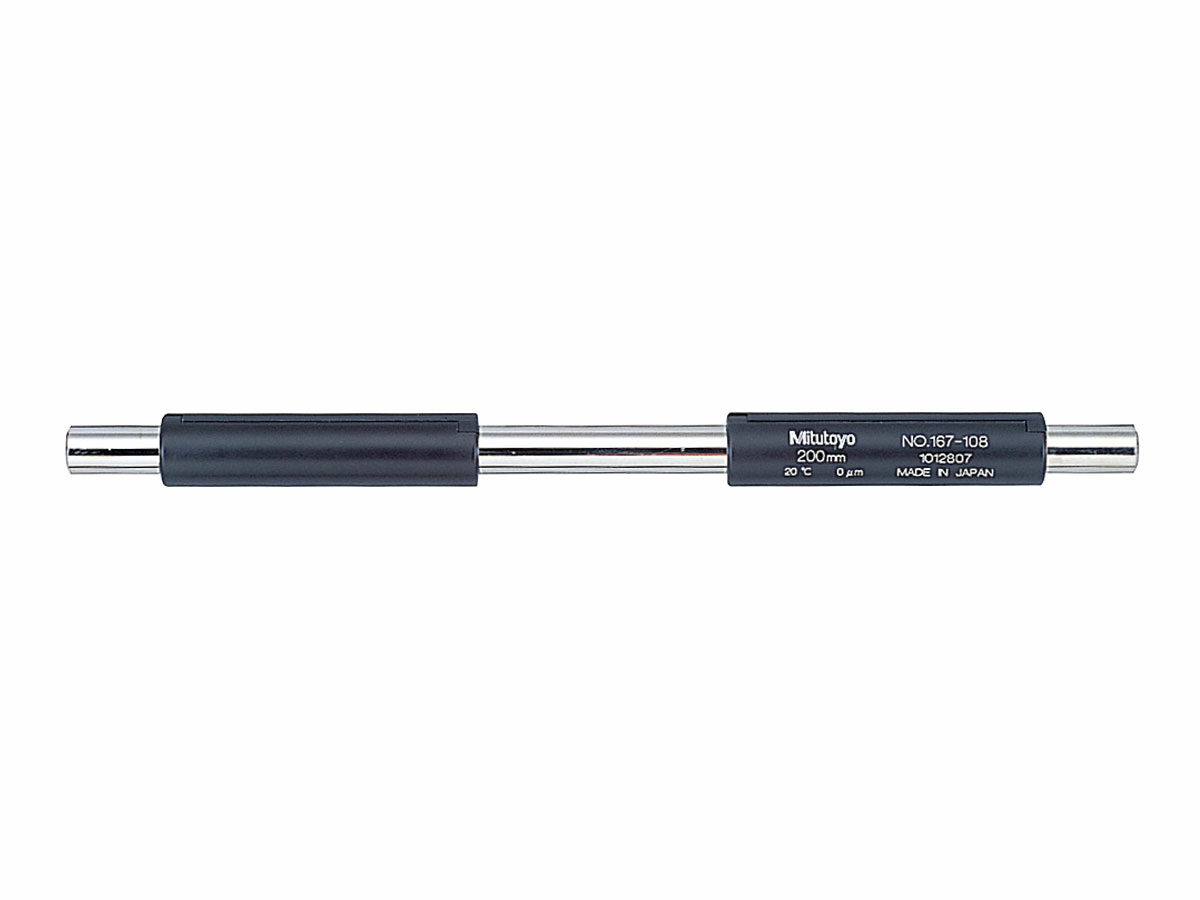

| 167-108 |  | Metric | 200mm | 9.4mm | ±5.0µm | — | — | — |
| 167-109 | — | Metric | 225mm | 9.4mm | ±5.5µm | — | — | — |
| 167-110 | — | Metric | 250mm | 9.4mm | ±6.0µm | — | — | — |
| 167-111 | — | Metric | 275mm | 9.4mm | ±6.5µm | — | — | — |
| 167-112 | — | Metric | 300mm | 9.4mm | ±7.0µm | — | — | — |
| 167-113 | — | Metric | 325mm | 9.4mm | ±7.5µm | — | — | — |
| 167-114 | — | Metric | 350mm | 9.4mm | ±8.0µm | — | — | — |
| 167-115 | — | Metric | 375mm | 9.4mm | ±8.5µm | — | — | — |
| 167-116 | — | Metric | 400mm | 9.4mm | ±9.0µm | — | — | — |
| 167-117 | — | Metric | 425mm | 9.4mm | ±9.5µm | — | — | — |
| 167-118 | — | Metric | 450mm | 9.4mm | ±10.0µm | — | — | — |
| 167-119 | — | Metric | 475mm | 9.4mm | ±10.5µm | — | — | — |
| 167-120 | — | Metric | 500mm | 11.9mm | ±11.0µm | — | — | — |
| 167-121 | — | Metric | 525mm | 11.9mm | ±11.5µm | — | — | — |
| 167-122 | — | Metric | 550mm | 11.9mm | ±12.0µm | — | — | — |
| 167-123 | — | Metric | 575mm | 11.9mm | ±12.5µm | — | — | — |
| 167-124 | — | Metric | 600mm | 11.9mm | ±13.0µm | — | — | — |
| 167-125 | — | Metric | 625mm | 11.9mm | ±13.5µm | — | — | — |
| 167-126 | — | Metric | 650mm | 11.9mm | ±14.0µm | — | — | — |
| 167-127 | — | Metric | 675mm | 11.9mm | ±14.5µm | — | — | — |
| 167-128 | — | Metric | 700mm | 11.9mm | ±15.0µm | — | — | — |
| 167-129 | — | Metric | 725mm | 11.9mm | ±15.5µm | — | — | — |
| 167-130 | — | Metric | 750mm | 11.9mm | ±16.0µm | — | — | — |
| 167-131 | — | Metric | 775mm | 11.9mm | ±16.5µm | — | — | — |
| 167-132 | — | Metric | 800mm | 11.9mm | ±17.0µm | — | — | — |
| 167-133 | — | Metric | 825mm | 11.9mm | ±17.5µm | — | — | — |
| 167-134 | — | Metric | 850mm | 11.9mm | ±18.0µm | — | — | — |
| 167-135 | — | Metric | 875mm | 11.9mm | ±18.5µm | — | — | — |
| 167-136 | — | Metric | 900mm | 11.9mm | ±19.0µm | — | — | — |
| 167-137 | — | Metric | 925mm | 11.9mm | ±19.5µm | — | — | — |
| 167-138 | — | Metric | 950mm | 11.9mm | ±20.0µm | — | — | — |
| 167-139 | — | Metric | 975mm | 11.9mm | ±20.5µm | — | — | — |
| 167-140 | — | Metric | 1000mm | 11.9mm | ±21.0µm | — | — | — |
| 167-141 |  | Inch | .1″ | .25″ | — | — | — | — |
| 167-142 |  | Inch | .2″ | .25″ | — | — | — | — |
| 167-143 |  | Inch | .3″ | .25″ | — | — | — | — |
| 167-144 |  | Inch | 4″ | .31″ | — | — | — | — |
| 167-145 |  | Inch | 5″ | .31″ | — | — | — | — |
| 167-146 |  | Inch | 6″ | .31″ | — | — | — | — |
| 167-147 |  | Inch | 7″ | .31″ | — | — | — | — |
| 167-148 | — | Inch | 8″ | .37″ | — | — | — | — |
| 167-149 |  | Inch | .9″ | .37″ | — | — | — | — |
| 167-150 |  | Inch | 10″ | .37″ | — | — | — | — |
| 167-151 |  | Inch | .11″ | .37″ | — | — | — | — |
| 167-152 | — | Inch | .12″ | .37″ | — | — | — | — |
| 167-153 |  | Inch | 13″ | .37″ | — | — | — | — |
| 167-154 |  | Inch | .14″ | .37″ | — | — | — | — |
| 167-155 |  | Inch | .15″ | .37″ | — | — | — | — |
| 167-156 |  | Inch | .16″ | .37″ | — | — | — | — |
| 167-157 |  | Inch | .17″ | .37″ | — | — | — | — |
| 167-158 |  | Inch | .18″ | .37″ | — | — | — | — |
| 167-159 |  | Inch | 19″ | .37″ | — | — | — | — |
| 167-160 |  | Inch | 20″ | .47″ | — | — | — | — |
| 167-161 | — | Inch | .21″ | .47″ | — | — | — | — |
| 167-162 | — | Inch | 22″ | .47″ | — | — | — | — |
| 167-163 | — | Inch | 23″ | .47″ | — | — | — | — |
| 167-164 | — | Inch | 24″ | .47″ | — | — | — | — |
| 167-165 | — | Inch | 25″ | .47″ | — | — | — | — |
| 167-166 | — | Inch | 26″ | .47″ | — | — | — | — |
| 167-167 | — | Inch | 27″ | .47″ | — | — | — | — |
| 167-168 | — | Inch | 28″ | .47″ | — | — | — | — |
| 167-169 | — | Inch | 29″ | .47″ | — | — | — | — |
| 167-170 | — | Inch | 30″ | .47″ | — | — | — | — |
| 167-171 | — | Inch | 31″ | .47″ | — | — | — | — |
| 167-172 | — | Inch | 32″ | .47″ | — | — | — | — |
| 167-173 | — | Inch | 33″ | .47″ | — | — | — | — |
| 167-174 | — | Inch | 34″ | .47″ | — | — | — | — |
| 167-175 | — | Inch | .35″ | .47″ | — | — | — | — |
| 167-176 | — | Inch | 36″ | .47″ | — | — | — | — |
| 167-177 | — | Inch | 37″ | .47″ | — | — | — | — |
| 167-178 | — | Inch | 38″ | .47″ | — | — | — | — |
| 167-179 | — | Inch | 39″ | .47″ | — | — | — | — |
| 167-180 | — | Inch | 40″ | .47″ | — | — | — | — |
| 167-405 | — | Inch | 41″ | 0.47″ | — | — | — | — |
| 167-406 | — | Inch | .42″ | 0.47″ | — | — | — | — |
| 167-407 | — | Inch | 43″ | 0.47″ | — | — | — | — |
| 167-408 | — | Inch | 44″ | 0.47″ | — | — | — | — |
| 167-409 | — | Inch | .45″ | 0.47″ | — | — | — | — |
| 167-410 | — | Inch | 46″ | 0.47″ | — | — | — | — |
| 167-411 | — | Inch | 47″ | 0.47″ | — | — | — | — |
| 167-412 | — | Inch | 48″ | 0.47″ | — | — | — | — |
| 167-413 | — | Inch | 49″ | 0.47″ | — | — | — | — |
| 167-414 | — | Inch | 50″ | 0.47″ | — | — | — | — |
| 167-415 | — | Inch | 51″ | 0.47″ |
