Микрометр V-образной наковальни-5 канавок

Механический микрометр Mitutoyo с V-образной пяткой измеряет наружный диаметр режущих инструментов, таких как метчики, развертки и концевые фрезы с пятью канавками. Доступны в дюймовых или метрических единицах измерения.

The Mitutoyo V-Anvil micrometer pointed spindle and V-Anvil delivers precise position for highly accurate measurements. The anvil and spindle are precision milled from hardened steel for lasting, accurate results. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.

Available in Metric or Inch models
V-Anvils with a centerline groove are available for measuring the pitch diameter of taps by the single-wire method
Ratchet mechanism provides an audible click to ensure measurement performs with a constant force
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a baked enamel finish for durability and longer lifespan
Supplied in fitted plastic case

Order No.:	Product Image:	Units:	Range:	Accuracy:	Mass:	Graduation:	Remarks:

Order No.:

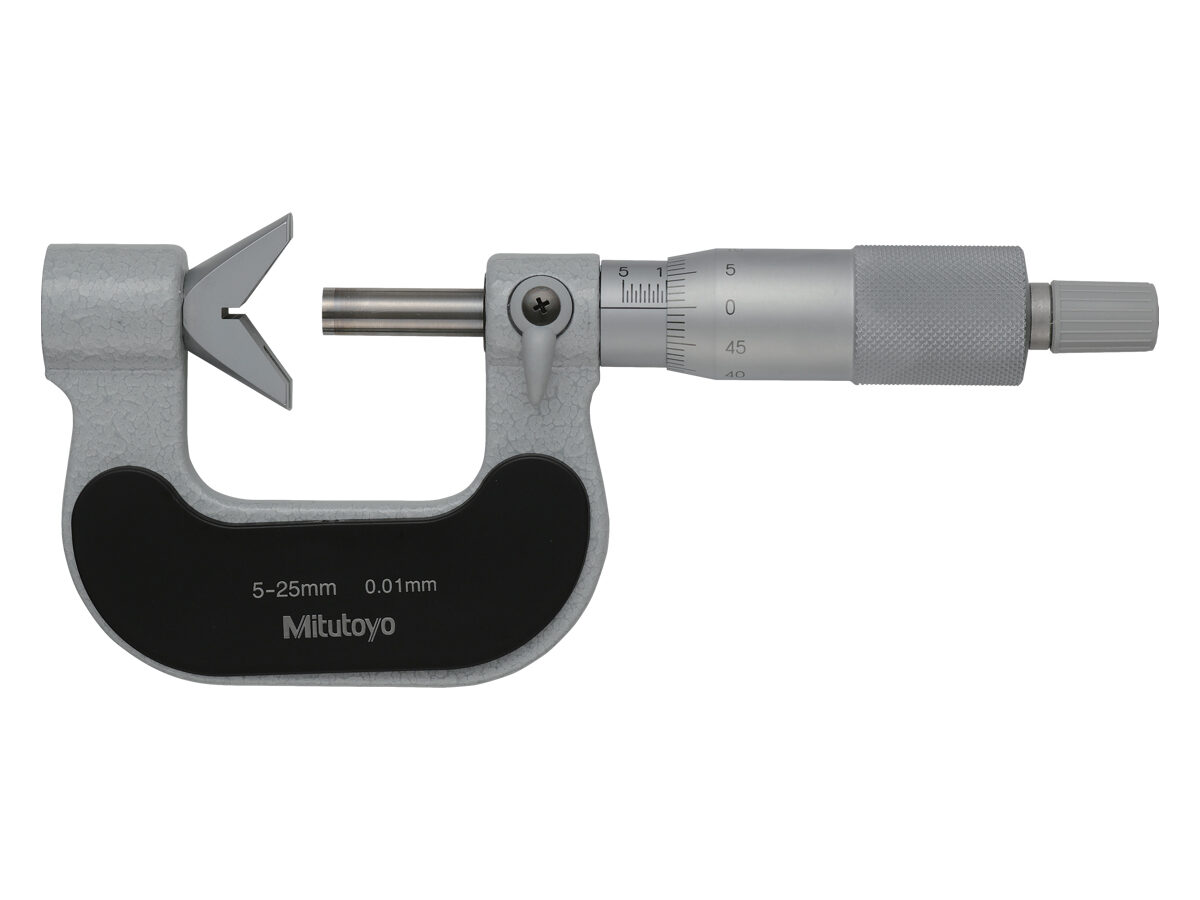

114-121		Metric	5-25mm	±4µm	255g	0.01mm	w/Groove
114-122	—	Metric	25-45mm	±5µm	400g	0.01mm	—
114-123		Metric	45-65mm	±6µm	540g	0.01mm	—
114-124	—	Metric	65-85mm	±7µm	760g	0.01mm	—
114-135		Inch	.09-1″	±.0002″	255g	0.0001″	—
114-137	—	Metric	2.3-25mm	±4µm	220g	0.01mm	—
114-165	—	Metric	5-25mm	±4µm	255g	0.01mm	—
