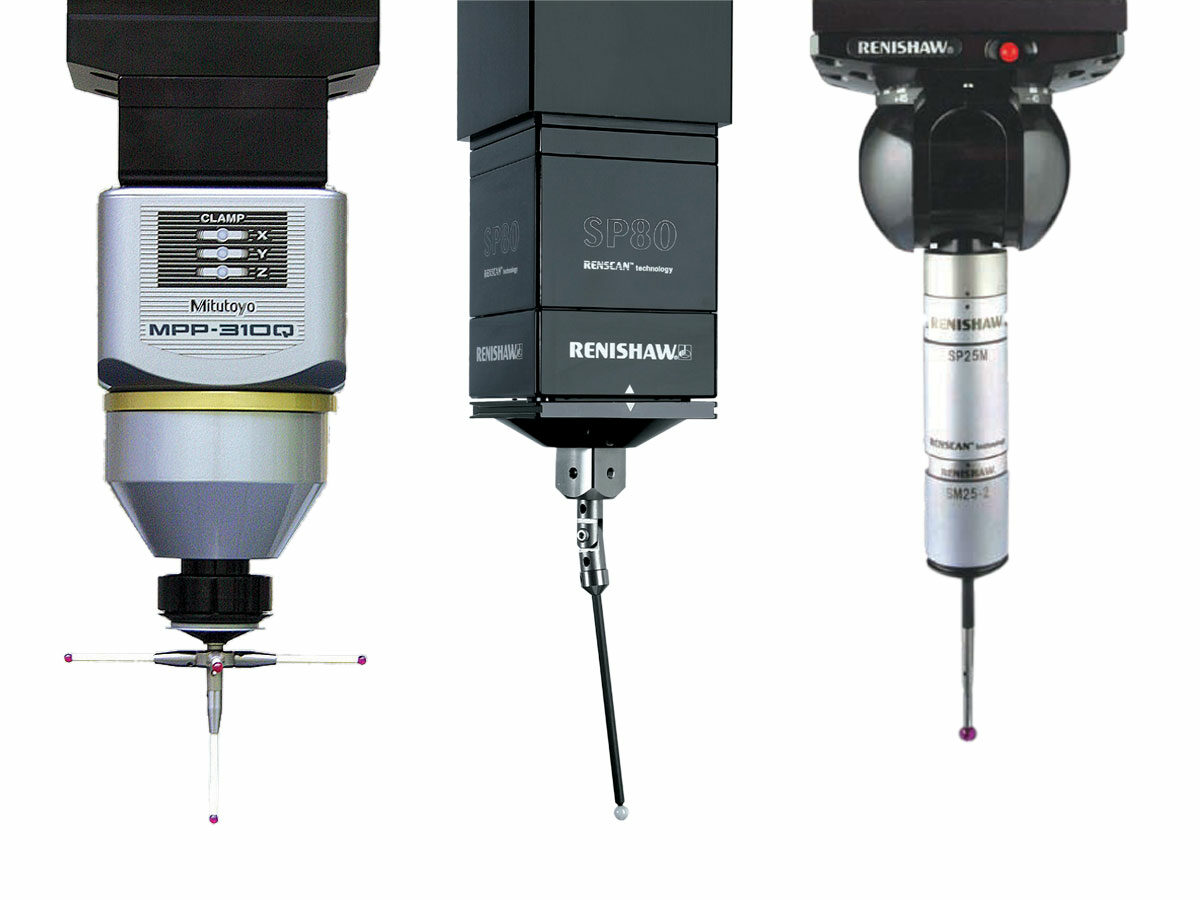

Scanning probes allow Coordinate Measuring Machines to quickly gather form and other profile data on complex workpieces and features that otherwise wouldn»t be possible. Mitutoyo offers CMM scanning probes with multiple functions and low contact force and support a variety of different styli for different applications and needs.
| Order No.: | Scanning Probe: | Probe Head: | CMM Type: | Software Required: | Sensing Technology: | Probe Mount: | Sensing Directions: | Stylus Mount: | Trigger force (at stylus tip): | ISO10360-5:2010 PFTU,MPE: | Maximum Stylus Length: |
|---|
| Order No.: |
|---|
| 06AEE097 | MPP | Not Applicable | CNC | MCOSMOS+Scanpak | Pneumatic Switching | Quill | X, ±Y, ±Z | M4 | 0.2N/mm Approximate | 1.5μm | 7.8739″ 200mm |
| A-2237-1015 | SP25 | PH10MQ, PH10M, PH6M | CNC | MCOSMOS+Scanpak | Electronic Strain Sensors | Autojoint Connector | ±X, ±Y, ±Z | M2 | 0.002 N (2 gF) @ 50 mm stylus tip | 1.7μm | 15.7479″ 400mm |
| A-2238-0700 | SP80 | Not Applicable | CNC | MCOSMOS+Scanpak | Silicon Strain Sensors | Quill | ±X, ±Y, ±Z | M5 | XY plane: 0.02 N Z axis: 0.15 N | 1.7μm | 19.6849″ 500mm |
| 06AEE097 |
| A-2237-1015 |
| A-2238-0700 |
