SJ-310 – Портативный тестер шероховатости поверхности

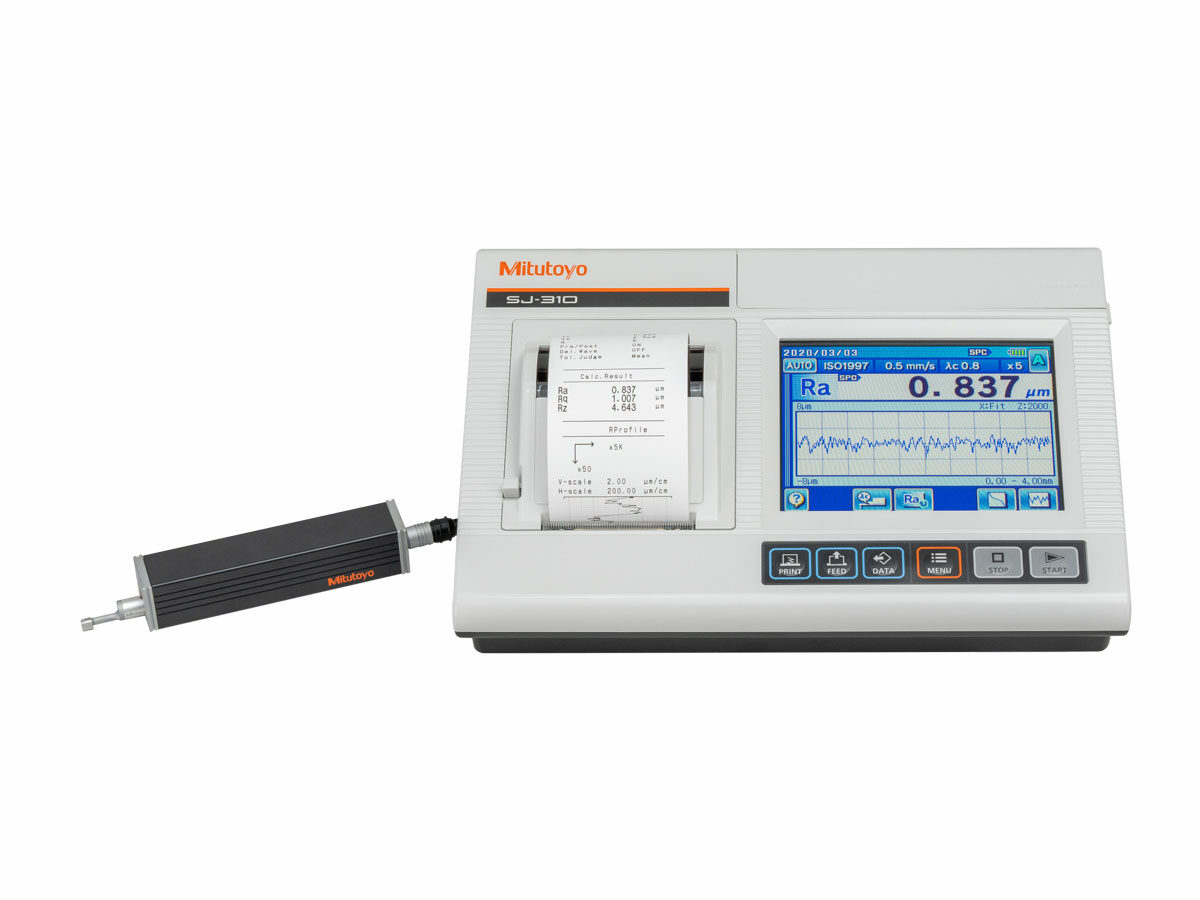

Прибор для измерения шероховатости поверхности Surftest SJ-310 представляет собой компактный, портативный и простой в использовании прибор для измерения шероховатости поверхности, оснащенный обширными функциями измерения и анализа.

The Surftest SJ-310 surface roughness measuring instrument provides accurate results in a compact, portable unit. The detector supports a variety of measurement orientations and can make measurements vertically and upside-down. The Surftest SJ-310 includes as built-in thermal printer which provides operators the ability to instantly print measurement results on site.

Built-in 5.7-inch color graphic, back-lit LCD touch-panel display provides superior readability, ease-of-use and visibility in dark environments
User interface provides intuitive, easy-to-understand operability
Reinforced Measure-Start, and other frequently used buttons, resist wear and workshop contaminants
Large-capacity battery allows approximately 1500 measurements when fully charged
Built-in high speed printer prints in landscape or portfolio mode for different applications
Internal memory stores up to 10 measurement conditions and one measured profile
An optional memory card can be used to store large quantities of measured profiles and conditions
Complies with the following standards: JIS (JIS-B0601-2001, JIS-B0601-1994, JIS B0601-1982), VDA, ISO- 1997, and ANSI

Order No.:	Range X-Axis:	Measuring Force:	Stylus tip (Diamond, angle °/ tip radius):

Order No.:

178-571-12A

.7″ / 17.5mm

4mN

90 / 5μm

178-571-12A

Технические характеристики

Measuring Speed:	.01, .02, .03 in/s / .25, .50, .75 mm/s
Returning Speed:	.039in/s / 1mm/s
Detector Z-Range:	1000, 14400, 4000μin / 100, 25, 360μm
Detector Z-Range Resolution:	.08, .20, .80μin / .002, .006, .02μm
Skid Radius of Curvature:	40mm
Skid Force:	less than 400mN
Detector Type:	Differential inductance
Power Supply (battery):	Rechargeable Ni-MH
Power Supply:	AC Adapter
Charging Time:	4 hrs
Endurance:	1000 measurements (approx)
External I/O:	Digimatic output, Footswitch I/F, Printer output, RS-232C I/F, USB I/F
External Data Storage:	Micro SD card
Display Unit:	10.8×4.29×7.8′ / 275x109x198mm
Drive Unit:	4.5x9x1′ / 115x23x26mm
Display Unit Mass:	3.7lbs /1.7kg
Drive Unit Mass:	.2 to .4kg
