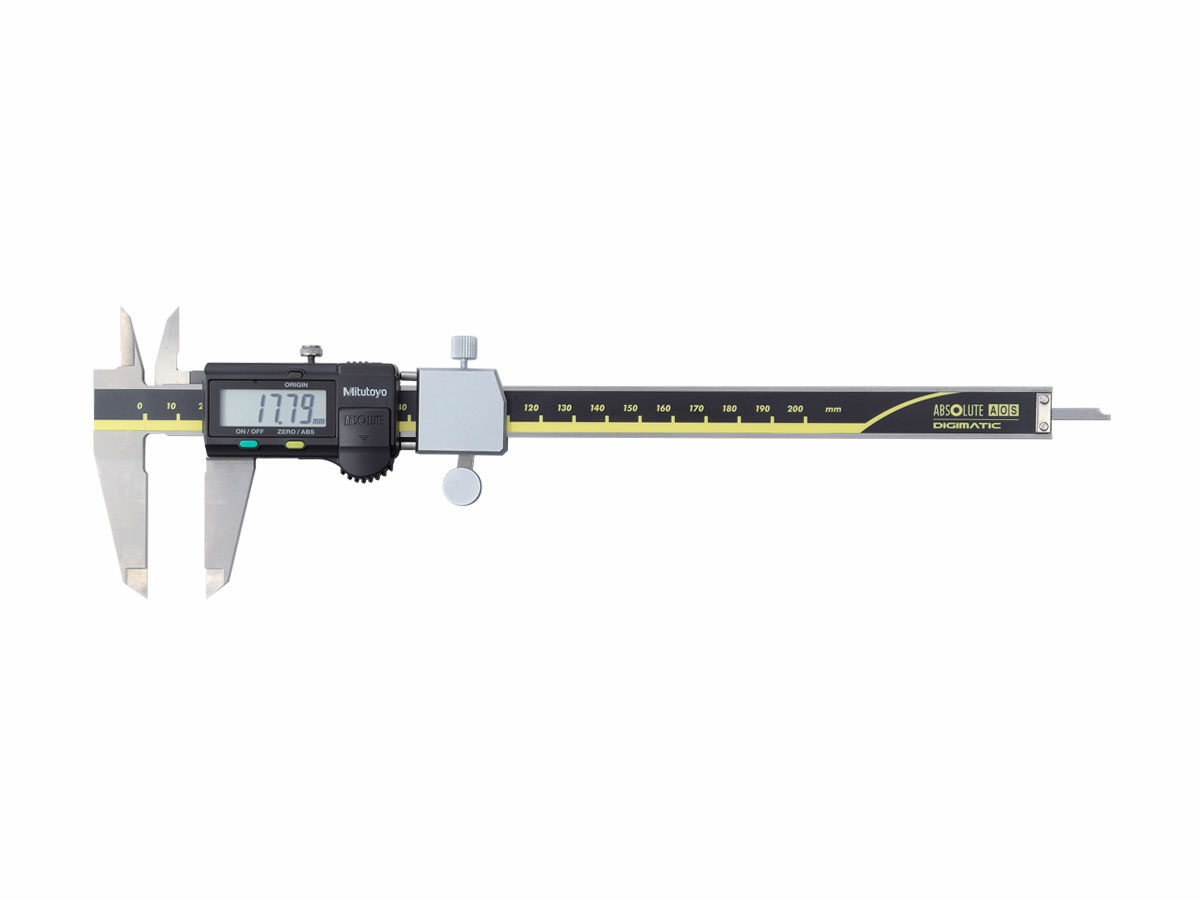

Штангенциркуль ABSOLUTE Digimatic Snap

Штангенциркуль Mitutoyo ABSOLUTE Snap идеально подходит для быстрых и эффективных измерений и проверки годных/не годных деталей серийного производства. Измерения отображаются на цифровом ЖК-дисплее с выходом SPC для удобной автоматической записи.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

The Mitutoyo ABSOLUTE Snap caliper features a spring loaded mechanism in the slide to perform fast, accurate measurements along with quick go/no-go decisions. Two sets of jaws, upper and lower, allow for precise outside and inside dimensions. Step and depth measurements are possible with the depth bar.

Available in Metric and Inch/Metric models
Measures pieces that standard calipers cannot measure
Range is 0-180mm/0-7” with accuracy rated at +/- 0.05mm
Jaws are tipped with carbide for better accuracy and longer performance
SPC output function offers quick and easy data management in real time
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on, overspeed errors are also eliminated
Functions include Origin Set, Zero Setting, Power On/Off, Data Output and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Constructed of hardened stainless steel for better durability and longevity
Supplied in fitted plastic case

Order No.:	Product Image:	Units:	Range:	Resolution:	Accuracy:	Repeatability:

Order No.:

573-181-30	—	Metric	0-100mm	0.01mm	±0.02mm	0.01mm
573-182-30	—	Metric	0-150mm	0.01mm	±0.02mm	0.01mm
573-281-30	—	Metric, Inch	0-100mm / 0-4″	0.01mm / 0.0005″	±0.001″	0.0005″
573-282-30	—	Metric, Inch	0-150mm / 0-6″	0.01mm / 0.0005″	±0.001″	0.0005″

573-181-30

573-182-30

573-281-30

573-282-30

Технические характеристики

Technology:	Digimatic
Length Standard:	ABSOLUTE electromagnetic induction type linear encoder
Max Response Speed:	Unlimited
Display:	LCD
Battery:	SR44 (1 pc.) 938882
Battery life:	Approx. 3.5 years under normal use
SPC Output:	Yes
Mass:	213g
Min Measuring Force:	7N
Max Measuring Force:	14N
Jaw retraction:	2mm
Optional Accessories:	959143, 959149, 959150
