Серфтест SJ-500/500P

Прибор для измерения шероховатости поверхности SJ-500 можно использовать как в настольном, так и в портативном режиме и получать высокоточные результаты измерений.

The SJ-500 is a high-precision and high-performance surface roughness tester with a dedicated control unit, achieving user-friendly display and simple operation. The portable SJ-500 surface tester provides highly accurate analysis of surface roughness and fine contours.

The SJ-500 is the portable version of the desktop SV-2100 surface roughness tester

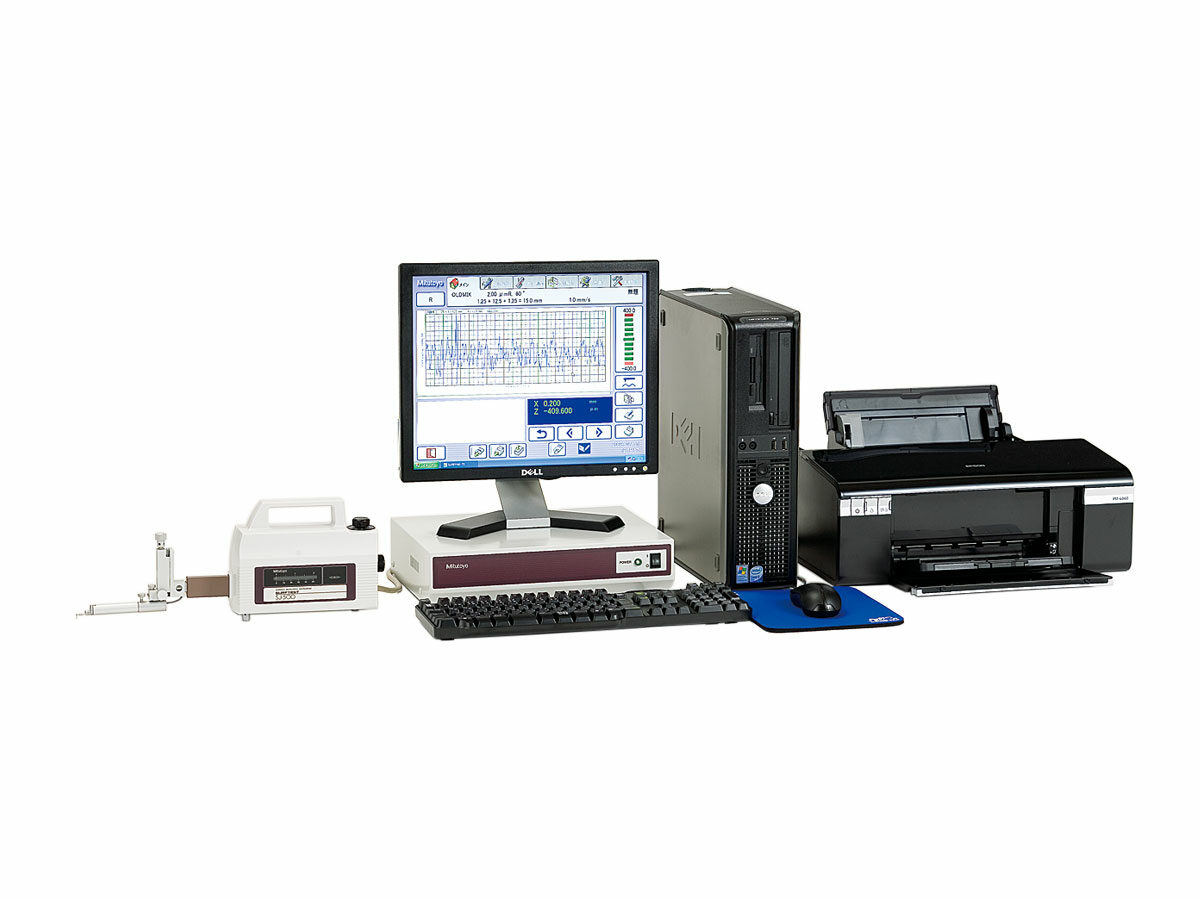

The SJ-500P is equipped with a desktop PC system
Supports measurement in the axial direction by swiveling detector through 90° to analyze shrouded features such as crankshafts
Vertical adjustment knob helps to safely position the stylus close to the workpiece and measure inside small holes
Digital Adjustment Tilting (DAT) function makes leveling of workpieces ±1.5° easier and more efficient
Highly visible, 7.5-inch TFT LCD color display and touch-operated panel provides user friendly, easy operability
Dedicated control unit»s built-in joystick allows for quick, easy position
Simple input function allows inputs according to drawing instruction symbols of ISO/JIS roughness standards for simple settings of surface roughness measuring conditions
Manual column stand is optional for SJ-500 (178-085, 178-089)

Order No.:	Model:	Measuring Force:	Stylus tip (Diamond, angle °/ tip radius):	Control Unit Display:	Drive Unit:

Order No.:

178-533-02A	SJ-500P	.75mN	60 / 2μm	PC	16.7×3.7×6.3″
178-534-13	SJ-500	4mN	90 / 5μm	PC	16.7×3.7×9.3″

178-533-02A

178-534-13

Технические характеристики

Range X-Axis:	1.97′ / 50mm
Resolution X-Axis:	1.97μin / .05μm
Measuring Method:	Linear encoder
Drive speed:	0 — .78 in/s / 0 — 20 mm/s
Measuring Speed:	.00078 — .2 in/s / .02 -5 mm/s
Traversing Direction:	Backward
Drive Unit Tilt Positioning:	±1.5°
Drive unit positioning (up/down):	1.18′ / 30mm
Detector Z-Range:	320, 3200, 32000μin / 8, 80, 800μm
Detector Z-Range Resolution:	.004, .04, .4μin / .0001, .001, .01μm
Detection Method:	Skidless / Skid
Skid Radius of Curvature:	1.57′ / 40mm
Detector Type:	Differential inductance
Power Supply:	AC power
External I/O:	Digimatic ouput, RS-232C I/F
Drive Unit:	425x94x160mm
Drive Unit Mass:	5.9lbs / 2.7kg
