Description

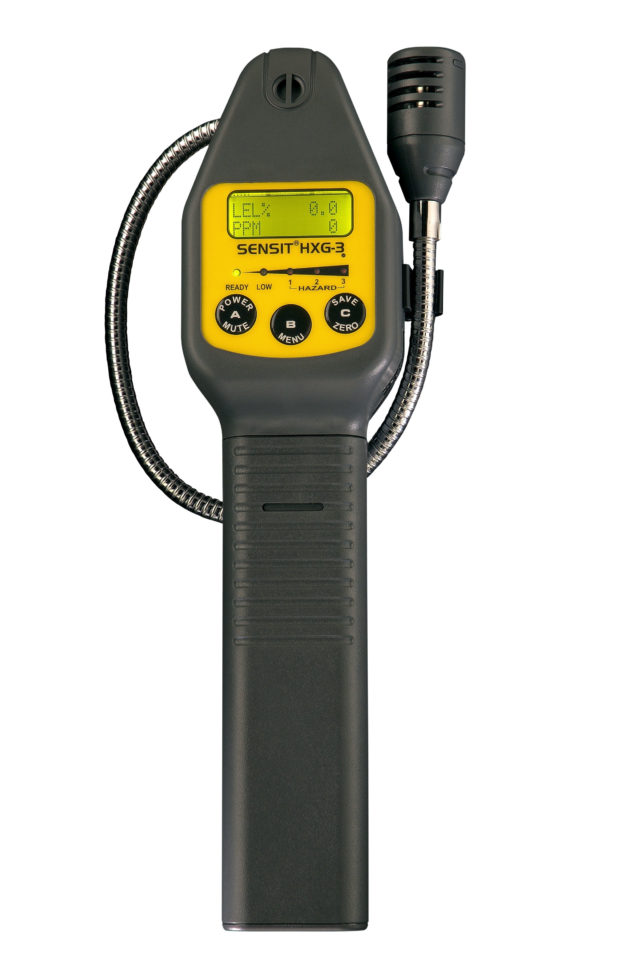

SENSIT HXG-3 ATEX is a handheld gas leak detection system developed for identifying combustible gasses.
SENSIT HXG-3 ATEX, like the HXG-3 and HXG-3P, can determine whether different types of combustible gases are present including methane, propane, natural gas, pentane and other volatile organic compounds (VOCs). The difference is the SENSIT HXG-3 ATEX comes with an ATEX certification, so you are assured it meets the standards that you require.
SENSIT HXG-3 ATEX has features for gas leak detection including a sensor that has both audible and visual alarms. These hazardous gas alarms are loud and are easily seen in a variety of conditions. It also comes with a backlit LCD which displays percent lower explosive limit (LEL) and part-per-million (ppm) readings.
To assist you in identifying gas leaks, SENSIT HXG-3 ATEX comes with a unique audible tick control. As the sensor picks up gas indications, you will hear a tick from the speaker on the back of the unit that will help you with your inspections.
SENSIT HXG-3 ATEX is highly accurate, easy to operate and maintain, comes in a rugged, durable design ready for tough field use and is made in the USA.
Recommended uses for the SENSIT HXG-3 ATEX include:
- Locating Small Gas Leaks
- Area Monitoring
- Gas Leak Surveying
- Gas Line Purging
- Arson / Accelerant Detection
A partial list of gasses detected by the SENSIT HXG-3 ATEX include:
- Acetone
- Alcohol
- Ammonia
- Butane
- Ethylene Oxide
- Gasoline
- Halon
- Hydrogen
- Jet Fuel
- Methane
- Natural Gas
- Propane
- Refrigerants
- Solvents
Технические характеристики
Specs
PRODUCT SPECIFICATIONS
Size: 11.5 x 3 x 2.2 (29.21 x 7.62 x 5.89 cm)
Weight: 1.2 lb. (0.54 kg)
Operational Temp: -4 to 122 F (-20 to 50 C)
Battery Life: Alkaline: Approximately 25 hrs. Continuous
SENSOR SPECIFICATIONS
| TYPE | RESOLUTION | RANGE | ACCURACY |
| LEL | 0.1% | 0-100% LEL | ±,10% |
| PPM* | 1ppm or 10ppm | 0-50,000 ppm | ±,10% |
*PPM Optional
